Shop All Headers & Wire Housings
Te Connectivity

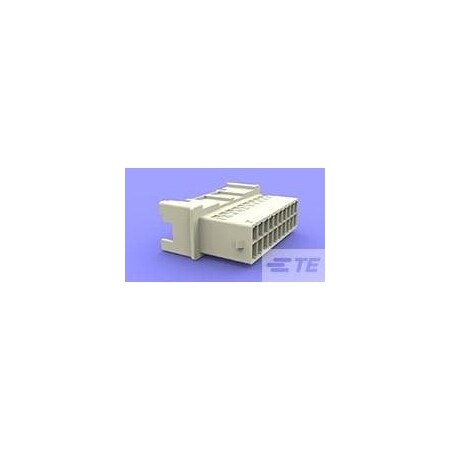

HSG REC PANEL MOUNT DUALROW EP2.5
Mfr # 3-1969594-4
Zoro # G200956289
Sold in multiples of 250 for $110.00
$110.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Color White
- Number of Rows 2
- For Use With 1969540 Plug Housing
- Material Nylon
- Width 0.406 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te Connectivity
- MFR # 3-1969594-4
- Zoro # G200956289
- Country of Origin China
- Category Headers & Wire Housings
Dimensions
Width | 0.406 in |
Height | 19.97 mm |
Length | 45.39 mm |
Max. Single Wire Size | 22 AWG |
Max. Insulation Dia. | 0.067 in |
Min. Single Wire Size | 26 AWG |
Details
Item | Connector |
Color | White |
Number of Rows | 2 |
For Use With | 1969540 Plug Housing |
Material | Nylon |
Application | Power, Signal |
Connector Terminates To | Wire & Cable |
Max. Temp. | 105°C |
Hole Center to Center | 2.5 mm |
Connector Type | Receptacle |
Current Rating | 3 A |
Flammability Rating | UL 94 V-0 |
Max. Voltage | 250V AC |
Contact Type | Pin |
Terminal Type | Crimp |
Number of Contacts | 34 |
