  11. H-17=RELAY VACUUM SPDT
Shop All General Purpose Relays
Te Connectivity

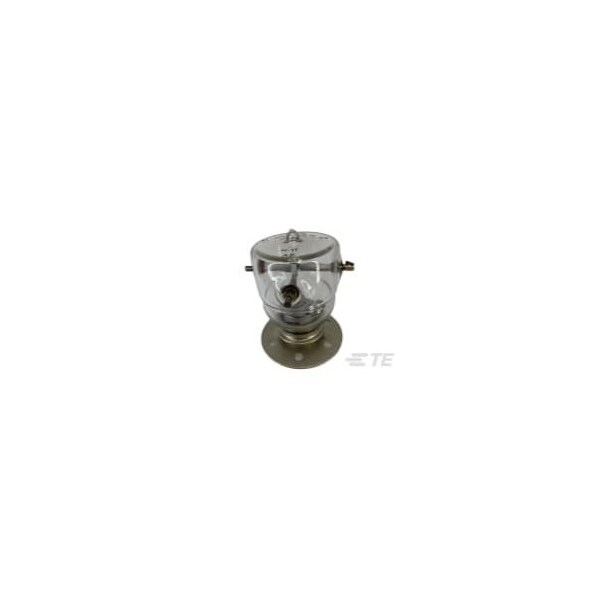

H-17=RELAY VACUUM SPDT

product price: $4,205.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Contact Current Rating 30 A
  • Contact Arrangement 1 Form A, SPST-NO, 1 NO, 1 Form C, SPDT, 1 C/O, 1 Form B, SPST-NC, 1 N/C
  • Relay Type High Voltage
  • Economizer Without
  • High Voltage Connection (Power) High Voltage Tabs
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Details

Contact Current Rating 30 A
Contact Arrangement 1 Form A, SPST-NO, 1 NO, 1 Form C, SPDT, 1 C/O, 1 Form B, SPST-NC, 1 N/C
Relay Type High Voltage
Economizer Without
High Voltage Connection (Power) High Voltage Tabs
Voltage (Max) 12000 VDC, 1800 VDC, 7500 VDC, 5000 VDC, 3500 VDC, 10000 VDC, 25000 VDC, 35000 VDC, 30000 VDC, 50000 VDC, 15000 VDC, 70000 VDC, 2200 VDC, 20000 VDC, 8000 VDC
Mounting Type Threaded
Contact Voltage Rating 25 kVDC
Termination Style Turret Terminals
Product Type Relay
Power Switching Make Only, Yes, No
RF Rated Yes
Coil Resistance 120 Ω
High Voltage Connection (Coil) Turret Terminals
Coil Voltage Rating 26.5 VDC
