Shop All Wire Disconnects
Te Connectivity

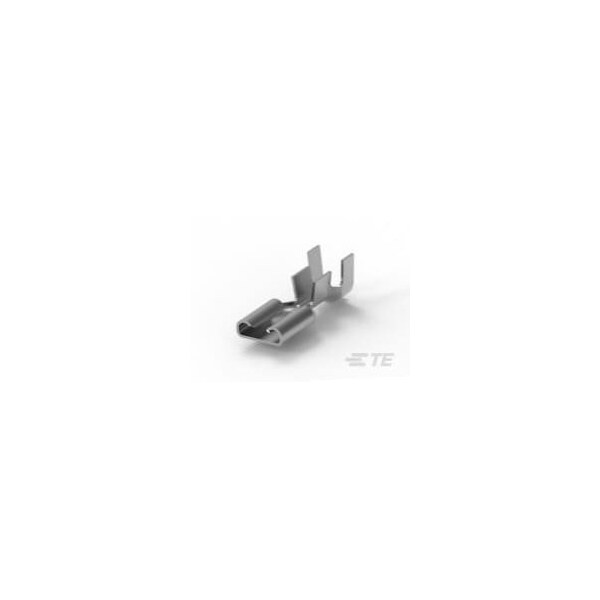

FF 250 REC 16-12AWG TPBR
Mfr # 62891-1
Zoro # G400966408
Sold in multiples of 8000 for $1,680.00
$1,680.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Wire Size 1.31-3.31 mm2
- Overall Length .75 in
- Terminal Type Receptacle
- Disconnect Type Quick Disconnect
- Terminates To Wire & Cable
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te Connectivity
- MFR # 62891-1
- Zoro # G400966408
- Country of Origin United States
- Category Wire Disconnects
Dimensions
Wire Size | 1.31-3.31 mm2 |
Overall Length | .75 in |
Mating Tab Width | .25 in |
Wire Insulation Diameter (Max) | 4.83 mm |
Accepts Wire Insulation Diameter Range | .15 - .19 in |
Details
Terminal Type | Receptacle |
Disconnect Type | Quick Disconnect |
Terminates To | Wire & Cable |
Connection Capacity | Single |
Crimp Type | F-Crimp |
Wire Insulation Support | With |
Receptacle Stock Thickness | .0157 in |
UL Rating | Listed |
FASTON | Yes |
Mating Tab Thickness | .032 in |
Contact Base Material | Brass |
Insertion Force | Normal |
Terminal & Splice Style | Receptacle |
Discrete Wire Type | Stranded |
Fully Insulated | Yes |
CSA Certified | Yes |
Plating Material | Tin |
Barrel Type | Open |
Terminal Orientation | Straight |
