Shop All Wire Disconnects
Te Connectivity

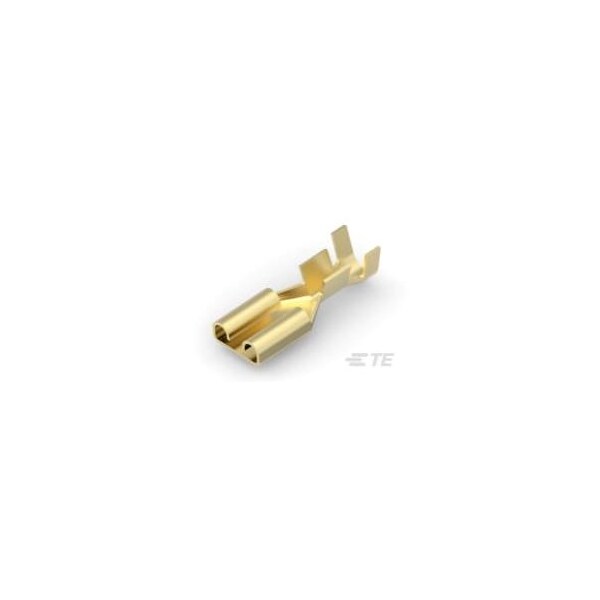

FF 250 REC 1.0-2.5MM2 BR LP
Mfr # 5-160447-4
Zoro # G801018058
Sold in multiples of 1000 for $170.00
$170.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Wire Size 17 - 13 AWG
- Overall Length .799 in
- Terminal Type Receptacle
- Accepts Wire Insulation Diameter Range .118 - .138 in
- Barrel Type Open
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te Connectivity
- MFR # 5-160447-4
- Zoro # G801018058
- Country of Origin Italy
- Category Wire Disconnects
Dimensions
Wire Size | 17 - 13 AWG |
Overall Length | .799 in |
Accepts Wire Insulation Diameter Range | .118 - .138 in |
Mating Tab Width | .25 in |
Details
Terminal Type | Receptacle |
Barrel Type | Open |
Disconnect Type | Quick Disconnect |
Voltage (Max) | 250 V |
Contact Base Material | Brass |
Wire/Cable Type | Regular Wire |
Terminal & Splice Style | Receptacle |
Receptacle Stock Thickness | .016 in |
UL Flammability Rating | UL 94V-2 |
Mating Retention Type | Locking Lance |
Terminates To | Wire & Cable |
Terminal Orientation | Straight |
Fully Insulated | No |
Connection Capacity | Single |
Wire Insulation Support | With |
Insertion Force | Normal |
Crimp Type | F-Crimp |
FASTON | Yes |
Plating Material | Unplated |
Mating Tab Thickness | .032 in |
