  11. FASTON 205/250 LIF PCB MOUNTED TPBR
Shop All Wire Disconnects
Te Connectivity

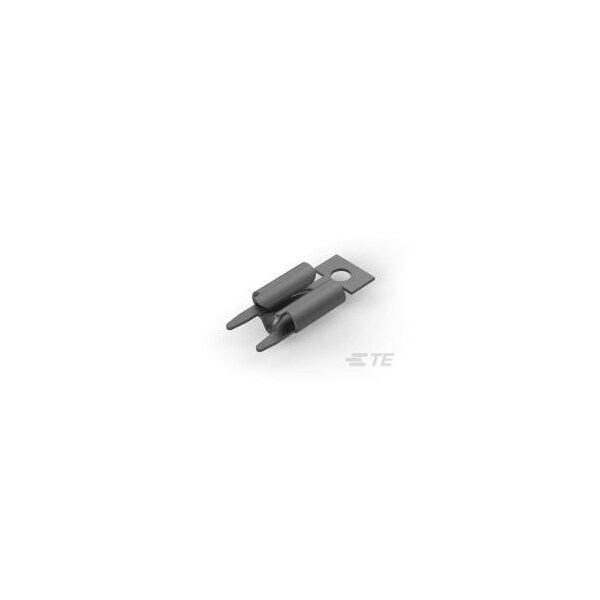

FASTON 205/250 LIF PCB MOUNTED TPBR

product price: $0.25
/ea
Sold in multiples of 2800 for $700.00
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Terminal Type Receptacle
  • Stud Hole No
  • Receptacle Stock Thickness .016 in
  • PCB Hole Diameter .055 in
  • Extension Below Board .15 in, 3.81 mm
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

PCB Hole Diameter .055 in
Terminal Size 5.2, 6.35
Height Off PCB 8.38 mm
Mating Tab Width .25 in, .205 in

Details

Terminal Type Receptacle
Stud Hole No
Receptacle Stock Thickness .016 in
Extension Below Board .15 in, 3.81 mm
Plating Thickness 100 µin
Insertion Force Low
Terminal Angle Straight
Contact Plating Material Tin
Terminates To Printed Circuit Board
Mating Tab Thickness .025 in, .031 in
Wire Insulation Support Without
Connection Capacity Single
Terminal & Splice Style Receptacle
Termination Method Through Hole - Solder
Plating Material Tin
Underplating Material Nickel
Terminal Orientation Straight
PCB Thickness (Recommended) .062 in
Line Budget
Operating Temperature Range -40 221 °F
