Te Connectivity

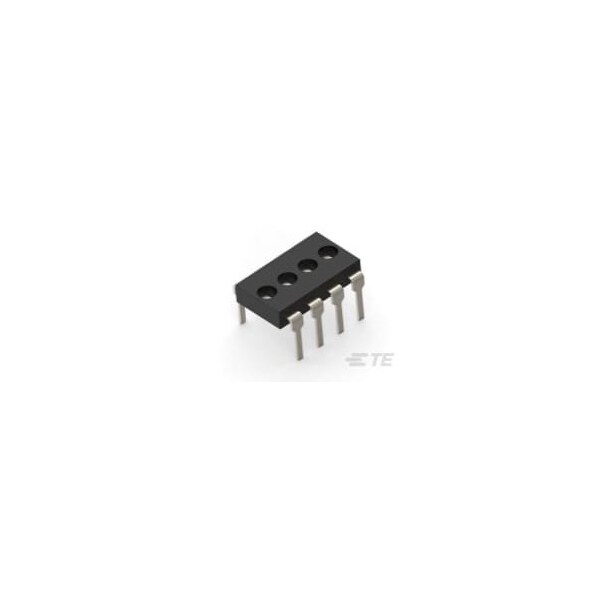

DIP Shunt 4 pos
Mfr # 1825190-3
Zoro # G101034390
Sold in multiples of 208 for $166.40
$166.40
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Housing Material High Temperature Nylon
- Height 2 mm [ .079 in ]
- Length 10.16 mm [ .399 in ]
- Number of Positions 4
- Shunt Type DIP
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te Connectivity
- MFR # 1825190-3
- Zoro # G101034390
- Country of Origin China
- Category Switch Accessories
Dimensions
Height | 2 mm [ .079 in ] |
Length | 10.16 mm [ .399 in ] |
Termination Post Length | 3.8 mm [ .15 in ] |
Details
Housing Material | High Temperature Nylon |
Number of Positions | 4 |
Shunt Type | DIP |
Mounting Angle | Right Angle |
Product Type | Shunt |
Switch Type | DIP |
Auto-Insertable | No |
Mounting Type | Through Hole |
Contact Mating Area Plating Material | Tin |
Operating Temperature Range (°C) | -30to85 |
Centerline | 2.54 mm [ .1 in ] |
Contact Base Material | Copper Alloy |
UL Flammability Rating | UL 94V-0 |
Solder Tail Contact Plating | Tin |
Housing Color | Black |
