Shop All Headers & Wire Housings
Te Connectivity

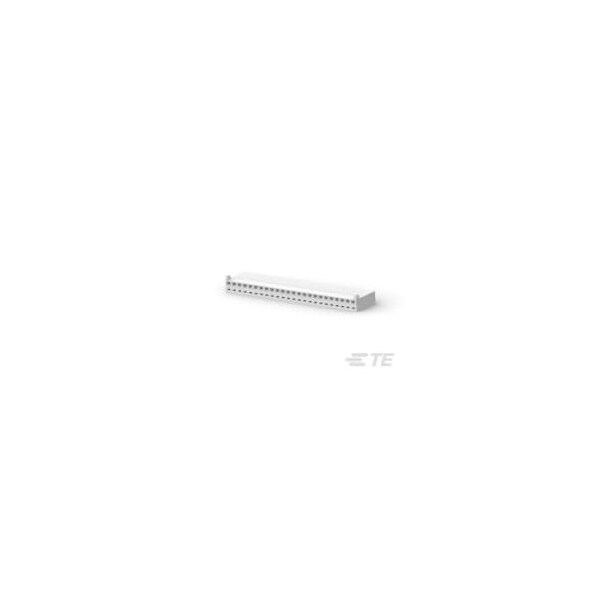

CST-100 II HOUSING 24 POS
Mfr # 2-1375820-4
Zoro # G800956375
product price: $0.91
/ea
Sold in multiples of 90 for $81.90
$81.90
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Number of Rows 1
- For Use With Mates with Specified MTA .100 Headers, Similar Competitive Notched Headers & CST .100 Shrouded Headers
- Standards CSA Certified; UL E28476; UL Recognized
- Length 61.47 mm
- Material Nylon
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Te Connectivity
- MFR # 2-1375820-4
- Zoro # G800956375
- Country of Origin China
- Category Headers & Wire Housings
Dimensions
Length | 61.47 mm |
Height | 6.6 mm |
Max. Single Wire Size | 22 AWG |
Min. Single Wire Size | 26 AWG |
Details
Item | Connector |
Number of Rows | 1 |
For Use With | Mates with Specified MTA .100 Headers, Similar Competitive Notched Headers & CST .100 Shrouded Headers |
Standards | CSA Certified; UL E28476; UL Recognized |
Material | Nylon |
Application | Power, Signal |
Color | Natural |
Current Rating | 7 A |
Max. Temp. | 105°C |
Hole Center to Center | 2.54 mm |
Max. Voltage | 250V AC |
Contact Type | Socket |
Flammability Rating | UL 94 V-0 |
Connector Terminates To | Wire & Cable |
Number of Contacts | 24 |
Terminal Type | Crimp |
Connector Type | Receptacle |
