Shop All Busways & Bus Plugs
Te Connectivity

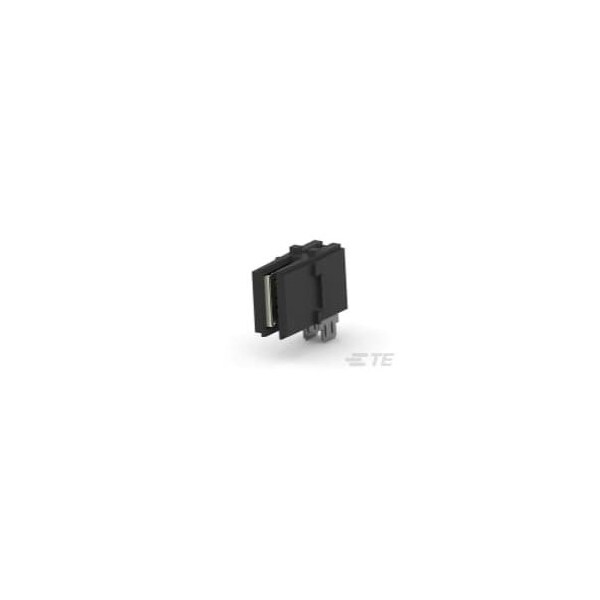

CROWN CLIP JUNIOR CONN
Mfr # 2178410-1
Zoro # G201037451
Sold in multiples of 20 for $99.00
$99.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Amps 170A
- Height 1.4 in
- Width 1.05 in
- Color Black
- Mounting Retention No
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te Connectivity
- MFR # 2178410-1
- Zoro # G201037451
- Country of Origin China
- Category Busways & Bus Plugs
Dimensions
Height | 1.4 in |
Width | 1.05 in |
Contact Length | .59 in |
Contact Size | 2 |
Details
Item | Busbar |
Amps | 170A |
Color | Black |
Mounting Retention | No |
Blade Thickness | .118 in |
Operating Temperature Range | -65 - 105DegC |
Connector Mounting Type | Board Mount |
Circuit Application | Power |
Connector System | Board-to-Bus Bar |
PCB Mount Orientation | Right Angle |
Contact Style | Socket |
Hot Pluggable | Yes |
Contact Current Rating (Max) | 170 A |
Connector Style | Receptacle |
Current Rating | 170 A |
Contact Base Material | High Conductivity Copper Alloy |
Mating Alignment | No |
PCB Termination | Through Hole - Solder |
Number of Positions | 2 |
Contact Plating Material | Tin |
