  11. Board Connector, 4 Contact(S), 1 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Locking,
Shop All PCB Connectors
Te Connectivity

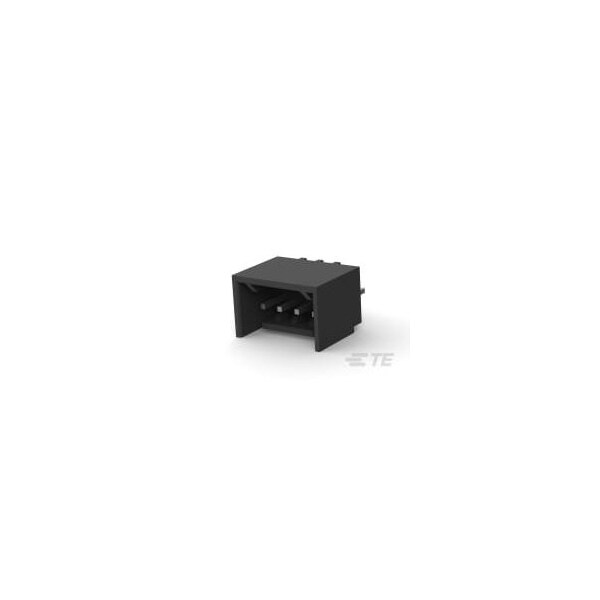

Board Connector, 4 Contact(S), 1 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Locking,

product price: $0.85
/ea
Sold in multiples of 150 for $127.50
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Color Black
  • Max. Voltage 250V AC
  • Application Signal
  • Standards CSA Certified; UL E28476; UL Recognized
  • Height 10.41 mm
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Height 10.41 mm
Length 14.83 mm

Details

Color Black
Item PCB Mount Header
Max. Voltage 250V AC
Application Signal
Standards CSA Certified; UL E28476; UL Recognized
Features Shrouded
Material Glass-Filled Polyester
Terminal Type Through Hole - Solder
Max. Temp. 105°C
Connection Material Copper Alloy
For Use With MTA .100 Connector Assembly
Hole Center to Center 2.54 mm
Terminal Finish Matte Tin Plated
Connector Terminates To Printed Circuit Board
Number of Contacts 4
Contact Finish Matte Tin Plated
Number of Rows 1
Flammability Rating UL 94 V-0
Contact Plating Thickness 3.81 to 6.3 µm
Current Rating 5 A
Contact Type Pin

Description

Board Connector, 4 Contact(S), 1 Row(S), Male, Straight, 0.1 Inch Pitch, Solder Terminal, Locking, Black Insulator, Plug
