Te Connectivity

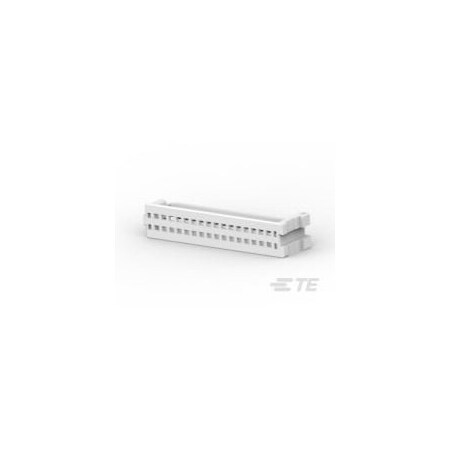

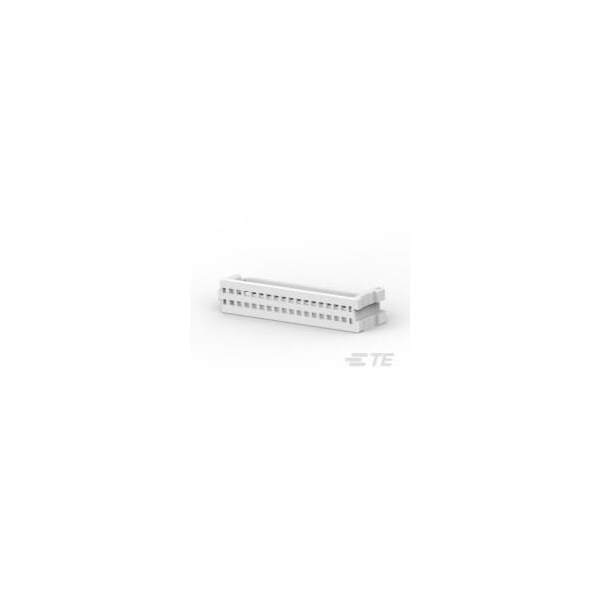

AMP MINI D/R HDR HSG 32P NATU

product price: $0.71
/ea
Sold in multiples of 150 for $106.50
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Height 7.4 mm
  • Length 27.9 mm
  • Number of Rows 2
  • Width 0.236 in
  • Color White
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Height 7.4 mm
Length 27.9 mm
Width 0.236 in
Max. Insulation Dia. 0.041 in
Min. Single Wire Size 28 AWG
Max. Single Wire Size 24 AWG

Details

Number of Rows 2
Color White
Standards CSA Certified; UL E28476
Application Power, Signal
Hole Center to Center 1.5 mm
Max. Temp. 105°C
Connector Terminates To Wire & Cable
Max. Voltage 250V AC
Terminal Type Insulation Displacement Crimp
Current Rating 2 A
Flammability Rating UL 94 V-0
Number of Contacts 32
