Shop All Headers & Wire Housings
Te Connectivity

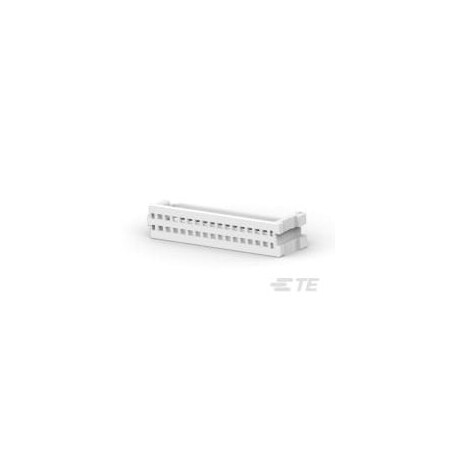

AMP MINI D/R HDR HSG 30P NATU

product price: $0.51
/ea
Sold in multiples of 200 for $102.00
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Length 26.4 mm
  • Height 7.4 mm
  • Number of Rows 2
  • Width 0.236 in
  • Color White
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Length 26.4 mm
Height 7.4 mm
Width 0.236 in
Max. Insulation Dia. 0.041 in
Min. Single Wire Size 28 AWG
Max. Single Wire Size 24 AWG

Details

Number of Rows 2
Color White
Application Power, Signal
Standards CSA Certified; UL E28476
Current Rating 2 A
Max. Voltage 250V AC
Connector Terminates To Wire & Cable
Flammability Rating UL 94 V-0
Number of Contacts 30
Max. Temp. 105°C
Terminal Type Insulation Displacement Crimp
Hole Center to Center 1.5 mm
