Te Connectivity

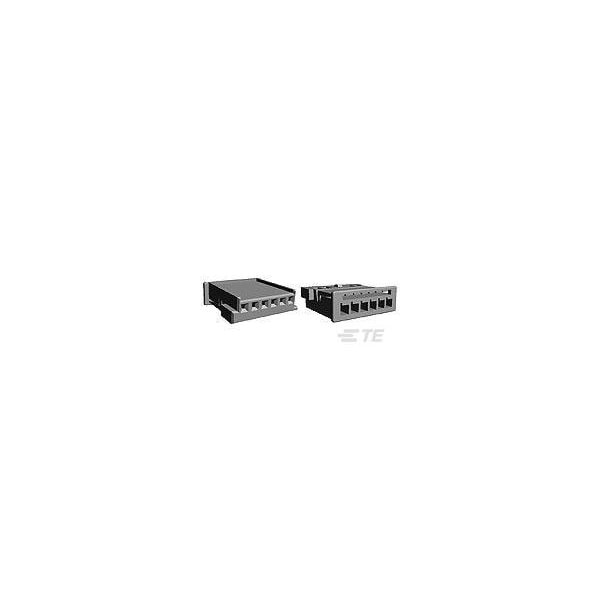

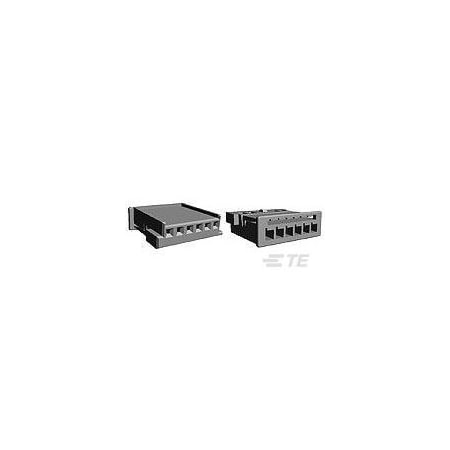

6POS MQS REC COD A
Mfr # 1-1241370-3
Zoro # G401034274
product price: $0.61
/ea
Sold in multiples of 150 for $91.50
$91.50
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Color Black
- Number of Positions 6
- Length 18.2 mm [ .717 in ]
- Width 5.4 mm [ .213 in ]
- Height 16.6 mm [ .654 in ]
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Te Connectivity
- MFR # 1-1241370-3
- Zoro # G401034274
- Country of Origin Switzerland
- Category Voice & Data Jacks
Dimensions
Length | 18.2 mm [ .717 in ] |
Width | 5.4 mm [ .213 in ] |
Height | 16.6 mm [ .654 in ] |
Mating Tab Width | .63 mm [ .025 in ] |
Details
Color | Black |
Number of Positions | 6 |
Cable Exit Angle | 180° |
UL Flammability Rating | None |
Connector Style | Housing for female terminals |
Sealed | No |
Operating Temperature Range | -40 to 120 °C [ -40 to 248 °F ] |
Terminal Position Assurance | Yes |
Body Material | PBT GF |
Strain Relief | No |
Polarized | No |
Operating Voltage (VDC) | 50 |
Primary Locking Feature | On the terminal |
Connector System | Wire-to-Board/Device, Wire-to-Wire |
Number of Rows | 1 |
Serviceable | No |
Pitch | 2.54 mm [ .1 in ] |
