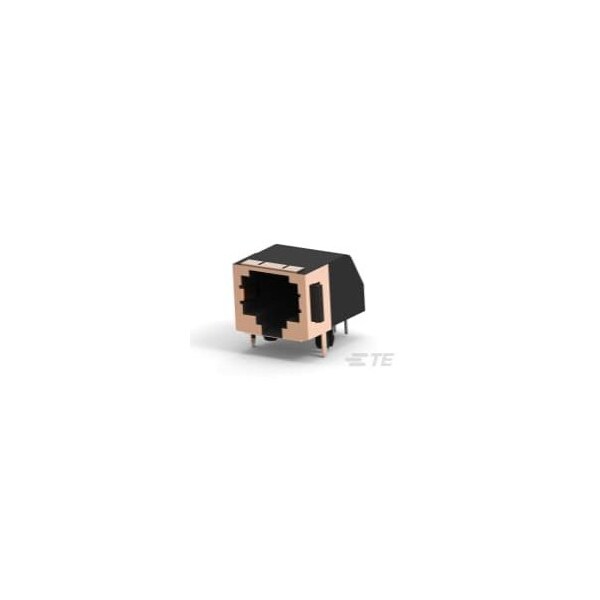

5555153-1

Name: 5555153-1
Brand: Te Connectivity
SKU: G101048892
Price: 82.00 USD
Availability: InStock

$2.05

/ea

Sold in multiples of 40 for $82.00

Free Shipping on orders over $50

Free 30-Day Returns

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Accepted Payment Options

Net 30

Product Information

Connector Height	.5 in
PCB Tail Length	.15 in

Number of Positions	8
Housing Color	Black
PCB Thickness (Recommended)	.062 in
Performance Category	Cat 3
Port Matrix Configuration	1 x 1
Connector & Contact Terminates To	Printed Circuit Board
Panel Mount Feature	With
Profile	Low
Connector Contact Density	Standard
Number of Contacts Loaded	8
Contact Base Material	Phosphor Bronze
Connectors & Connector Components Type	Connector
Shielded	Yes
Latch Orientation	Standard - Latch Down
Port Configuration	Single Port
Connector Mounting Type	Panel, Board Mount
Connector Product Type	Connector Assembly
Grounding Options	PCB Ground
Contact Mating Area Plating Material Thickness	50µin
Modular Jacks & Plugs Products	RJ Type Jacks & Plugs
Operating Temperature Range	-40 to 185°F
Contact Underplating Material	Nickel
Connector Style	Jack
Keyed	No
PCB Mount Orientation	Right Angle
Modular Jack & Plug Interface Type	RJ45
Centerline (Pitch)	.04 in
Panel Mount Feature Type	Panel Stops
Number of PCB Ground Tabs	2
Shield Plating Material	Tin
PCB Ground Tab Location	3.05 mm, .12 in
Contact Current Rating (Max)	1.5 A, .2 A
Housing Material	PBT Polyester
Termination Method to Printed Circuit Board	Through Hole - Solder
Entry Location	Side
UL Flammability Rating	UL 94V-0
Status Indicator	None
Circuit Application	Signal
Contact Mating Area Plating Material	Gold
Shield Material	Copper Alloy
PCB Contact Termination Area Plating Material	Tin
