Shop All Headers & Wire Housings
Te Connectivity

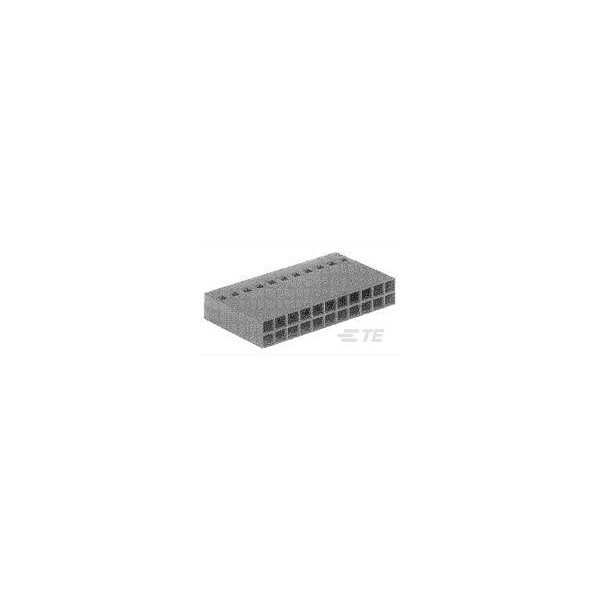

26 SHORT PT RCPT HSG DR .100CL
Mfr # 1-104482-1
Zoro # G800955453
Sold in multiples of 65 for $94.25
$94.25
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Color Black
- Min. Single Wire Size 32 AWG
- Max. Single Wire Size 20 AWG
- Number of Rows 2
- Max. Voltage 300V AC
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te Connectivity
- MFR # 1-104482-1
- Zoro # G800955453
- Country of Origin Mexico
- Category Headers & Wire Housings
Dimensions
Min. Single Wire Size | 32 AWG |
Max. Single Wire Size | 20 AWG |
Height | 0.198 in |
Length | 1.2 in |
Details
Item | Connector |
Color | Black |
Number of Rows | 2 |
Max. Voltage | 300V AC |
Material | Thermoplastic |
Standards | UL E28476; CSA LR7189 |
Flame Retardant | Yes |
Connector Type | Receptacle |
Terminal Type | Crimp |
Max. Temp. | 105°C |
Hole Center to Center | 2.54 mm |
Number of Contacts | 26 |
Contact Type | Socket |
Connector Terminates To | Wire & Cable |
Flammability Rating | UL 94 V-0 |
Current Rating | 3 A |
Description
Documents & Resources
Ratings & Reviews
