Te Connectivity

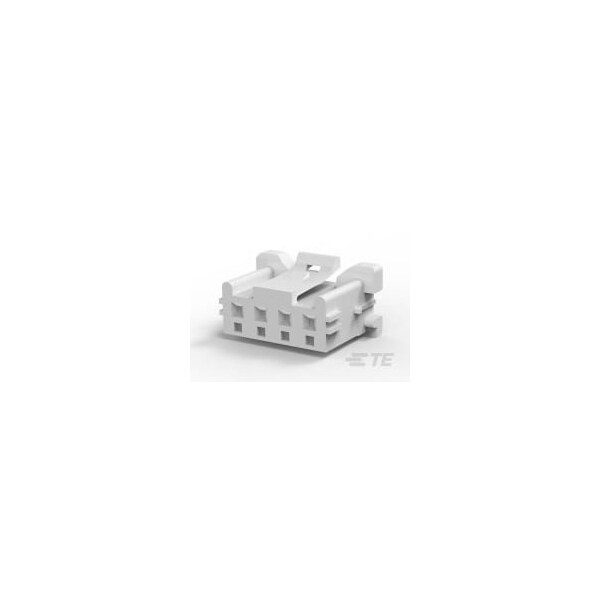

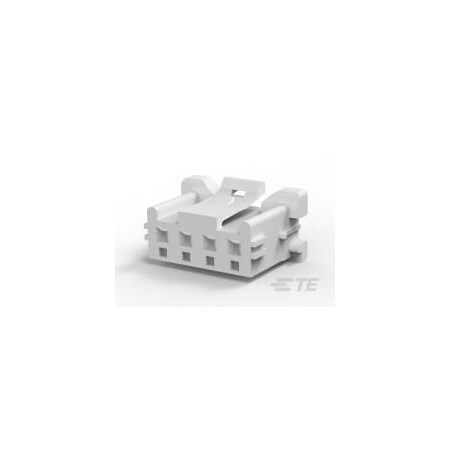

2.5MM PITCH SIGNAL MATE CONN

product price: $0.30
/ea
Sold in multiples of 400 for $120.00
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Number of Rows 1
  • Material Nylon
  • Color Natural
  • For Use With Header Assembly
  • Height 6.5 mm
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Height 6.5 mm
Length 0.492 in
Max. Single Wire Size 22 AWG
Min. Single Wire Size 26 AWG

Details

Item Connector
Number of Rows 1
Material Nylon
Color Natural
For Use With Header Assembly
Application Power, Signal
Hole Center to Center 2.5 mm
Connector Type Plug, Receptacle
Max. Voltage 50V AC/DC
Terminal Type Crimp
Flammability Rating UL 94 V-0
Max. Temp. 105°C
Number of Contacts 4
Current Rating 2.5 A
Connection Material Phosphor Bronze
Connector Terminates To Printed Circuit Board
Contact Type Pin
