Shop All Wire Disconnects
Te Connectivity

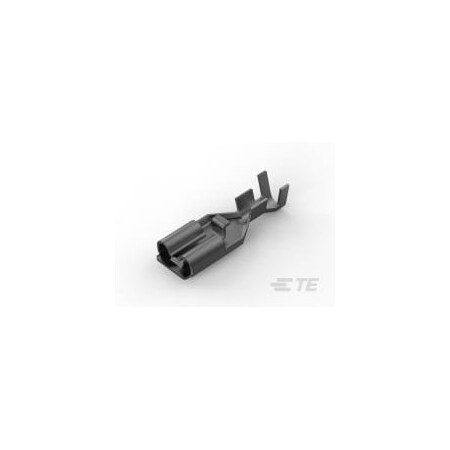

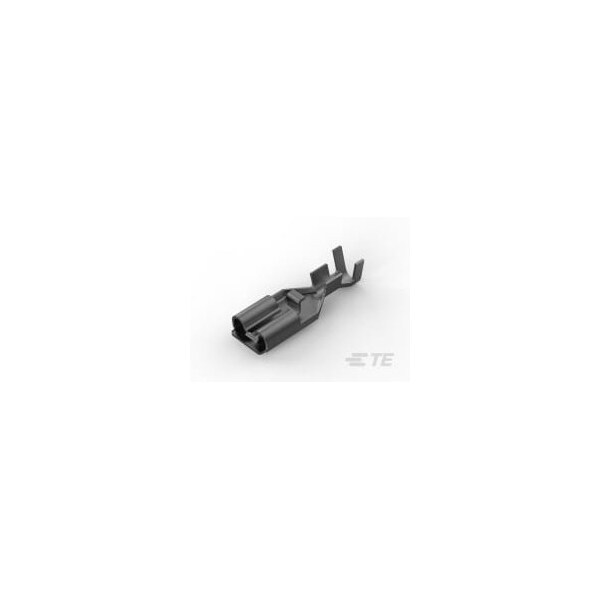

250 PL EX REC. 18-14AWG PTBR
Mfr # 179974-6
Zoro # G500984135
Sold in multiples of 4500 for $675.00
$675.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Wire Size 18 - 14 AWG
- Overall Length .834 in
- Terminal Type Receptacle
- Discrete Wire Type Stranded
- Crimp Type F-Crimp
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te Connectivity
- MFR # 179974-6
- Zoro # G500984135
- Country of Origin Japan
- Category Wire Disconnects
Dimensions
Wire Size | 18 - 14 AWG |
Overall Length | .834 in |
Accepts Wire Insulation Diameter Range | .087 - .134 in |
Mating Tab Width | .25 in |
Wire Insulation Diameter (Max) | .134 in |
Details
Terminal Type | Receptacle |
Discrete Wire Type | Stranded |
Crimp Type | F-Crimp |
Operating Temperature Range | -40 105 °C |
Wire/Cable Type | Discrete Wire |
Fully Insulated | No |
Terminal Orientation | Straight |
Contact Base Material | Copper |
Wire Insulation Support | With |
Insertion Force | Low |
Barrel Type | Open |
Terminates To | Wire & Cable |
Receptacle Stock Thickness | .016 in |
Plating Material | Pre-Tin |
Mating Tab Thickness | .032 in |
UL Rating | Listed |
Mating Retention Type | Dimple |
Terminal & Splice Style | Receptacle |
