Te Connectivity

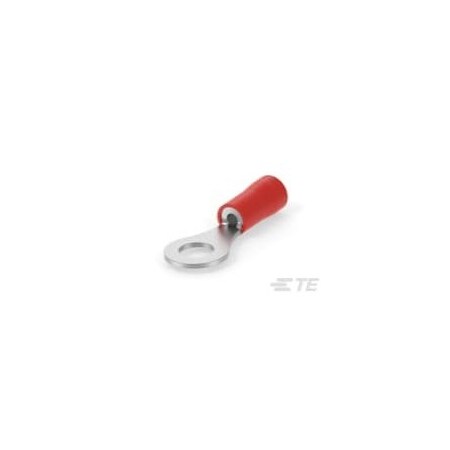

22-16 PIDG R/T 2BA NYLON EXP.1
Mfr # 151730
Zoro # G000974766
product price: $0.60
/ea
Sold in multiples of 200 for $120.00
$120.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Wire Range Commercial: 22 to 16 AWG, Military: 22 to 18 AWG
- Insulation Type Nylon
- Stud Size M5
- Insulation Color Red
- Terminal Type Ring Tongue
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Te Connectivity
- MFR # 151730
- Zoro # G000974766
- Country of Origin United States
- Category Wire Terminals
Dimensions
Stud Size | M5 |
Barrel Inside Dia. | 0.145 in |
Overall Length | 0.972 in |
Details
Wire Range | Commercial: 22 to 16 AWG, Military: 22 to 18 AWG |
Insulation Type | Nylon |
Insulation Color | Red |
Terminal Type | Ring Tongue |
Max. Temp. | 221 Degrees F |
Standards | MIL-T-7928 |
Seam | Standard, Closed Barrel |
Wire Type | Solid or Stranded, Regular Wire |
Item | Ring Terminal |
Features | Wire Insulation Support |
Max. Voltage | 300V |
Terminal Orientation | Straight |
Contact Plating Material | Tin |
Insulation Dia | 0.105 to 0.14 in |
