Te Connectivity

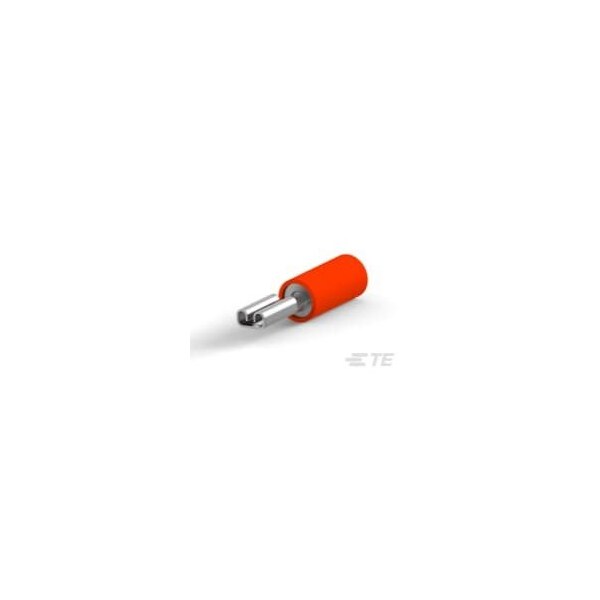

2 8 PIDG FASTON REC
Mfr # 165565-2
Zoro # G300975166
Sold in multiples of 150 for $120.00
$120.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Wire Size .3-1.5 mm2
- Overall Length .779 in
- Terminal Type Receptacle
- Connection Capacity Single
- FASTON Yes
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te Connectivity
- MFR # 165565-2
- Zoro # G300975166
- Country of Origin United States
- Category Wire Disconnects
Dimensions
Wire Size | .3-1.5 mm2 |
Overall Length | .779 in |
Wire Insulation Diameter (Max) | .14 in |
Mating Tab Width | .11 in |
Details
Terminal Type | Receptacle |
Connection Capacity | Single |
FASTON | Yes |
Terminal Orientation | Straight |
Plating Material | Tin |
Crimp Type | F-Crimp |
Insulated | Yes |
Voltage (Max) | 300 V |
Disconnect Type | Quick Disconnect |
Wire Insulation Support | With |
Mating Tab Thickness | .02 in |
Fully Insulated | No |
Insulation Material | Nylon |
Contact Base Material | Phosphor Bronze |
Mating Retention Type | Dimple |
Terminates To | Wire & Cable |
Barrel Color | Red |
Insertion Force | Normal |
