Te Connectivity

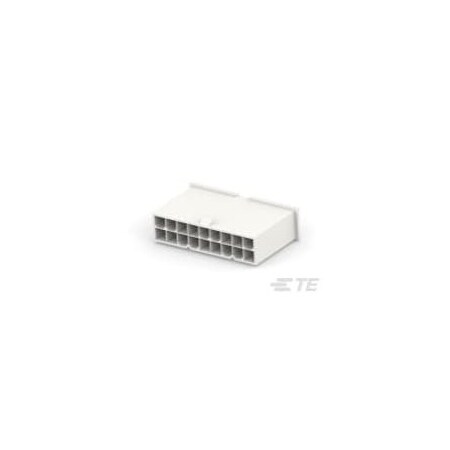

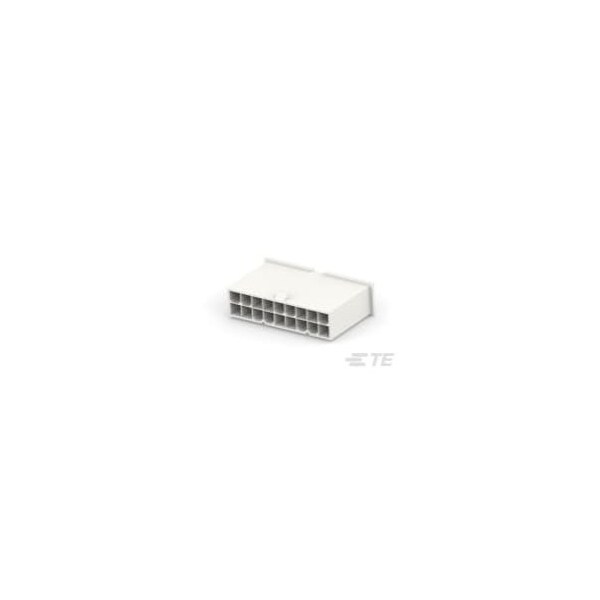

18P FH PLUG VAL-U-LOK FH GW
Mfr # 1-1969604-8
Zoro # G500955807
Sold in multiples of 500 for $370.00
$370.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Number of Rows 2
- Height 9.6 mm
- Length 39 mm
- Material Polyamide
- Color White
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te Connectivity
- MFR # 1-1969604-8
- Zoro # G500955807
- Country of Origin China
- Category Headers & Wire Housings
Dimensions
Height | 9.6 mm |
Length | 39 mm |
Width | 0.937 in |
Details
Item | Housing |
Number of Rows | 2 |
Material | Polyamide |
Color | White |
Application | Power, Signal |
Standards | CSA Certified; UL E28476; UL Recognized |
Number of Contacts | 18 |
Connector Terminates To | Wire & Cable |
Max. Voltage | 600V AC |
Max. Temp. | 105°C |
Contact Type | Pin |
Flammability Rating | UL 94 V-2 |
Hole Center to Center | 4.2 mm |
Terminal Type | Crimp |
