Shop All Wire Disconnects
Te Connectivity

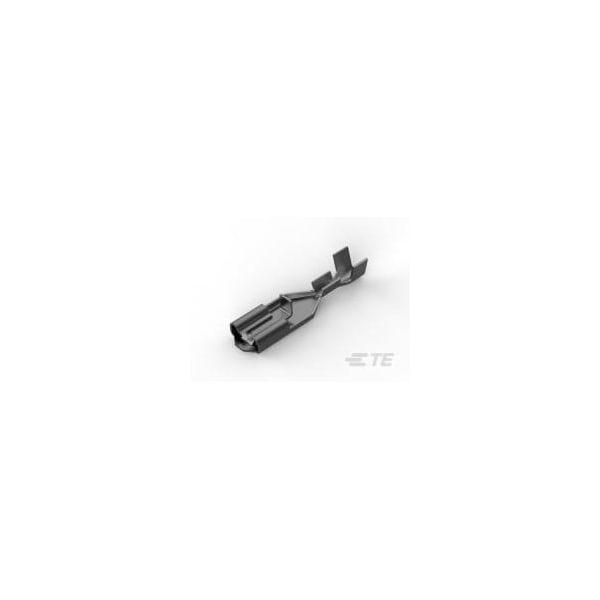

187 PL MKII REC. 24-20AWG PTBR
Mfr # 170324-1
Zoro # G001009207
product price: $0.07
/ea
Sold in multiples of 8000 for $560.00
$560.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Wire Size 24 - 20 AWG
- Overall Length .85 in
- Terminal Type Receptacle
- Mating Tab Thickness .02 in
- Wire Insulation Support With
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Te Connectivity
- MFR # 170324-1
- Zoro # G001009207
- Country of Origin China
- Category Wire Disconnects
Dimensions
Wire Size | 24 - 20 AWG |
Overall Length | .85 in |
Accepts Wire Insulation Diameter Range | .059 - .106 in |
Wire Insulation Diameter (Max) | .059 in |
Mating Tab Width | .187 in |
Details
Terminal Type | Receptacle |
Mating Tab Thickness | .02 in |
Wire Insulation Support | With |
Receptacle Stock Thickness | .011 in |
Barrel Type | Open |
Insertion Force | Low |
Crimp Type | F-Crimp |
Fully Insulated | No |
Disconnect Type | Quick Disconnect |
Terminal Orientation | Straight |
Wire/Cable Type | Discrete Wire |
Terminates To | Wire & Cable |
Contact Base Material | Brass |
Terminal & Splice Style | Receptacle |
Discrete Wire Type | Stranded |
Plating Material | Pre-Tin |
Operating Temperature Range | -40 105 °C |
