Shop All Headers & Wire Housings
Te Connectivity

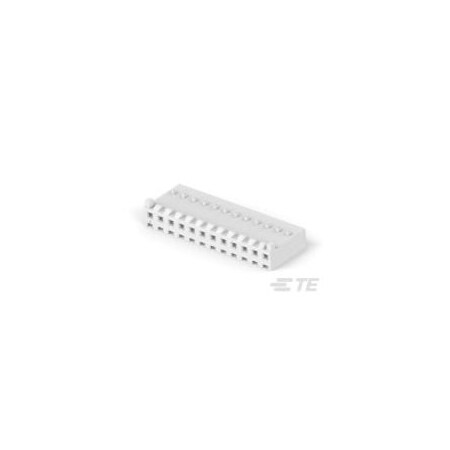

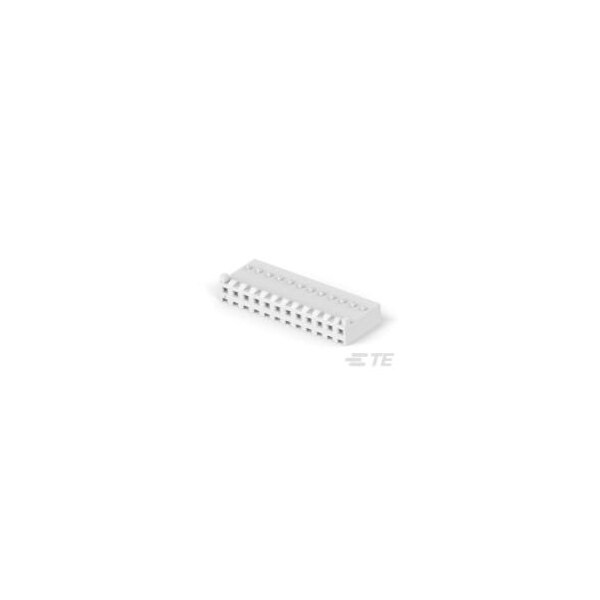

12P SL156 HSG W/LCK RMP TABS & RTNR
Mfr # 1-2132189-2
Zoro # G700955300
Sold in multiples of 100 for $86.00
$86.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Color Natural
- Min. Single Wire Size 24 AWG
- Max. Single Wire Size 18 AWG
- Number of Rows 1
- Max. Voltage 250V AC
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te Connectivity
- MFR # 1-2132189-2
- Zoro # G700955300
- Country of Origin China
- Category Headers & Wire Housings
Dimensions
Min. Single Wire Size | 24 AWG |
Max. Single Wire Size | 18 AWG |
Length | 1.871 in |
Details
Color | Natural |
Item | Connector |
Number of Rows | 1 |
Max. Voltage | 250V AC |
Application | Power, Signal |
Terminal Type | Crimp |
Hole Center to Center | 3.96 mm |
Material | Nylon |
Connection Material | Phosphor Bronze |
For Use With | SL .156 Contacts |
Max. Temp. | 105°C |
Connector Type | Receptacle |
Standards | CSA Certified; UL E28476; UL Listed |
Number of Contacts | 12 |
Connector Terminates To | Wire & Cable |
Contact Type | Socket |
Current Rating | 6.5 A |
Flammability Rating | UL 94 V-0 |
