Te Connectivity

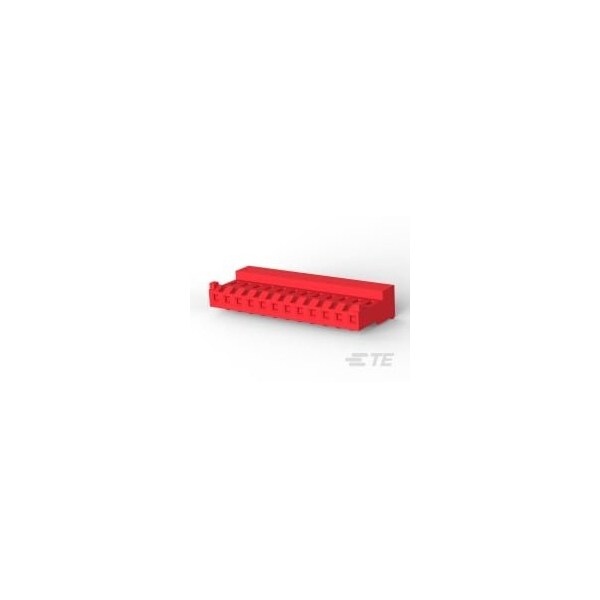

12P MTA156 CONN ASSY 22AWG LF
Mfr # 4-643819-2
Zoro # G000928608
Sold in multiples of 45 for $89.55
$89.55
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Wire Range 22 AWG
- Insulation Color Red
- Overall Length 47.55 mm
- Terminal Type Socket
- Connection Material Copper Alloy
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te Connectivity
- MFR # 4-643819-2
- Zoro # G000928608
- Country of Origin China
- Category Wire Terminals
Dimensions
Overall Length | 47.55 mm |
Details
Wire Range | 22 AWG |
Insulation Color | Red |
Item | Connector Assembly |
Terminal Type | Socket |
Connection Material | Copper Alloy |
Max. Voltage | 600V AC |
Connection Type | Locking Lance, Insulation Displacement Crimp (IDC) |
Wire Type | Stranded, Discrete Wire |
Standards | UL, CSA Listed |
Features | Strain Relief |
Max. Temp. | 221 Degrees F |
Application | Power, Printed Circuit Board, Wire and Cable |
Terminal Orientation | 90 ° |
Insulation Dia | 0.095 in |
Contact Plating Material | Nickel |
Mounting Type | Cable Mount |
