Shop All Headers & Wire Housings
Te Connectivity

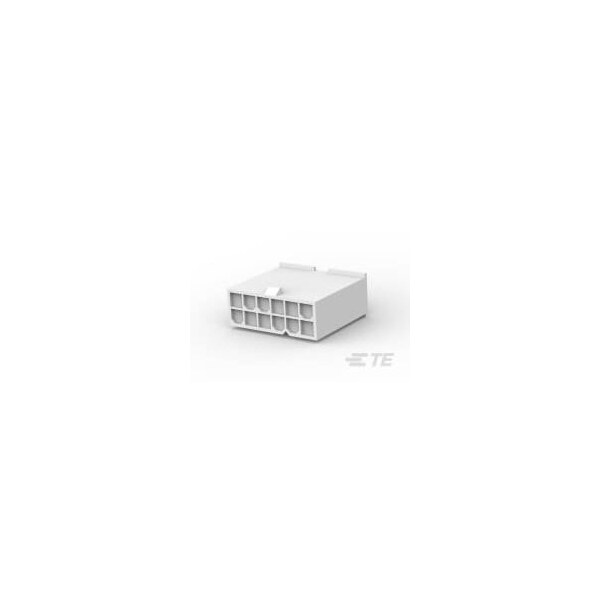

12P FH PLUG VAL-U-LOK V0
Mfr # 1-1586017-2
Zoro # G500956194
Sold in multiples of 250 for $97.50
$97.50
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Number of Rows 2
- Application Power, Signal
- Height 9.6 mm
- Material Nylon
- Features Circuit Identification Feature; With Multiple Contact Types
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te Connectivity
- MFR # 1-1586017-2
- Zoro # G500956194
- Country of Origin Taiwan, Province of China
- Category Headers & Wire Housings
Dimensions
Height | 9.6 mm |
Width | 0.937 in |
Length | 26.4 mm |
Max. Insulation Dia. | 3.1 mm |
Details
Item | Housing |
Number of Rows | 2 |
Application | Power, Signal |
Material | Nylon |
Features | Circuit Identification Feature; With Multiple Contact Types |
Standards | CSA Certified; UL E28476; UL Recognized |
Color | White |
Flammability Rating | UL 94 V-0 |
Terminal Type | Crimp |
Contact Type | Pin |
Wire Type | Discrete |
Connector Terminates To | Wire & Cable |
Hole Center to Center | 4.2 mm |
Max. Temp. | 105°C |
Number of Contacts | 12 |
Max. Voltage | 600V AC |
