Shop All PCB Connectors
Te Connectivity

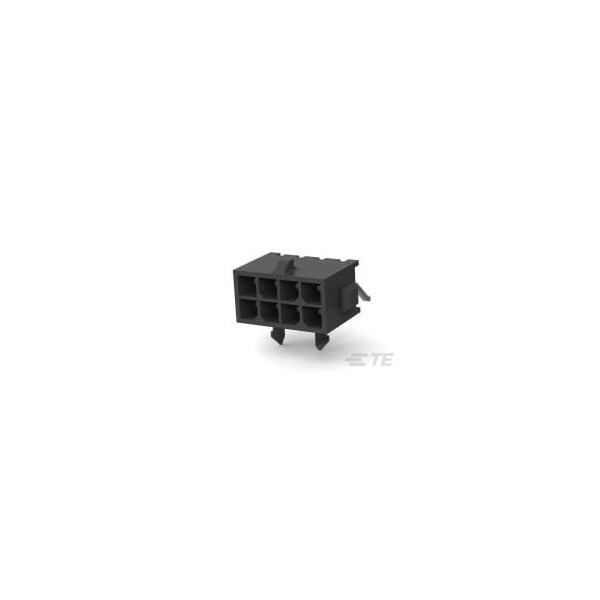

08P MICRO MNL ASSY R/A SMT LF
Mfr # 3-794621-8
Zoro # G501043558
product price: $2.19
/ea
Sold in multiples of 150 for $328.50
$328.50
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Material High Temperature Nylon
- Length 4.7 mm
- Min. Single Wire Size 30 AWG
- Color Black
- Max. Voltage 250V AC/DC
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Te Connectivity
- MFR # 3-794621-8
- Zoro # G501043558
- Country of Origin China
- Category PCB Connectors
Dimensions
Length | 4.7 mm |
Min. Single Wire Size | 30 AWG |
Width | 7.37 mm |
Height | 8.11 mm |
Max. Single Wire Size | 20 AWG |
Max. Insulation Dia. | 1.53 mm |
Details
Item | Header |
Material | High Temperature Nylon |
Color | Black |
Max. Voltage | 250V AC/DC |
Application | Power |
Standards | CSA Certified; UL E28476; UL Recognized |
Terminal Finish | Tin Plated |
Number of Rows | 2 |
Max. Temp. | 105°C |
Connector Terminates To | Printed Circuit Board |
Flammability Rating | UL 94 V-0 |
Terminal Type | Surface Mount |
Number of Contacts | 8 |
Contact Finish | Tin Plated |
Current Rating | 5 A |
Contact Type | Pin |
Hole Center to Center | 3 mm |
Contact Plating Thickness | 2.54 to 7.62 µm |
Description
