Te Connectivity

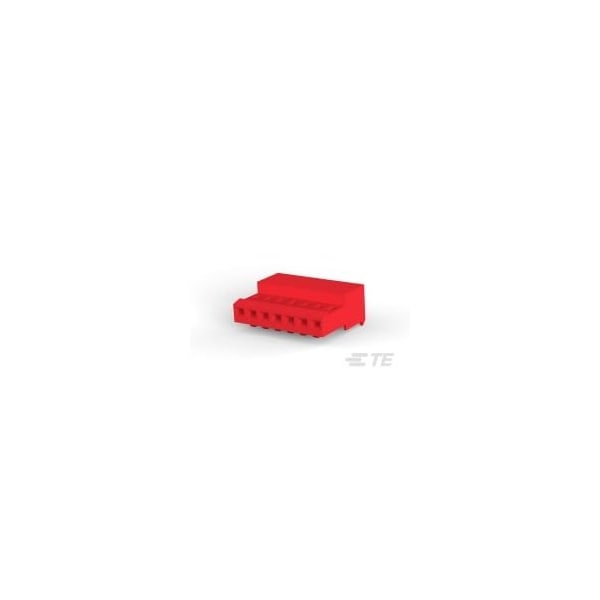

07P MTA100 CONN ASSY RED 30AU
Mfr # 3-641237-7
Zoro # G600928794
product price: $3.29
/ea
Sold in multiples of 30 for $98.70
$98.70
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Wire Range 0.3 to 0.4 mm²
- Insulation Color Red
- Standards UL, CSA Listed
- Max. Temp. 221 Degrees F
- Connection Material Copper Alloy
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Te Connectivity
- MFR # 3-641237-7
- Zoro # G600928794
- Country of Origin China
- Category Wire Terminals
Dimensions
Overall Length | 20.32 mm |
Details
Wire Range | 0.3 to 0.4 mm² |
Insulation Color | Red |
Standards | UL, CSA Listed |
Max. Temp. | 221 Degrees F |
Connection Material | Copper Alloy |
Item | Connector |
Max. Voltage | 250V AC |
Terminal Type | Closed End Receptacle |
Connection Type | Locking Lance, Socket, Insulation Displacement Crimp (IDC) |
Wire Type | Discrete Wire, Stranded |
Features | Strain Relief |
Application | Signal, Wire and Cable, Power |
Terminal Orientation | 90 ° |
Mounting Type | Cable Mount |
Insulation Dia | 0.06 in |
Contact Plating Material | Nickel |
