  11. 06 MODII HORZ SR CE 100CL
Shop All PCB Connectors
Te Connectivity

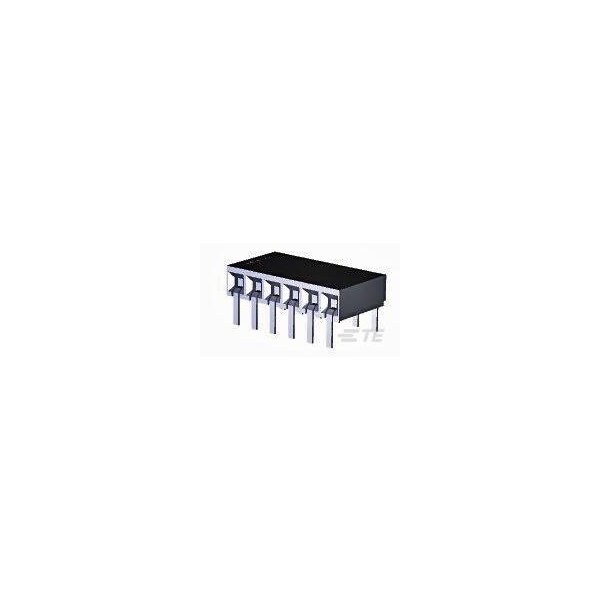

06 MODII HORZ SR CE 100CL

product price: $1.49
/ea
Sold in multiples of 5000 for $7,450.00
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Max. Voltage 333V AC
  • Application High Temperature
  • Series AMPMODU, MOD II
  • Standards UL E28476; CSA LR7189
  • Height 3.47 mm
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Height 3.47 mm

Details

Item PCB Mount Receptacle
Max. Voltage 333V AC
Application High Temperature
Series AMPMODU, MOD II
Standards UL E28476; CSA LR7189
Color Black
Material Glass-Filled Polyester
Terminal Type Through Hole - Solder
Contact Finish Gold Plated
Number of Contacts 6
Max. Temp. 125°C
Contact Type Socket
Number of Rows 1
Hole Center to Center 2.54 mm
Connection Material Phosphor Bronze
Terminal Finish Tin Plated
Connector Terminates To Printed Circuit Board
Flammability Rating UL 94 V-0
Contact Plating Thickness 30 µin
Current Rating 2 A
