Shop All Wire Terminals
Te Connectivity

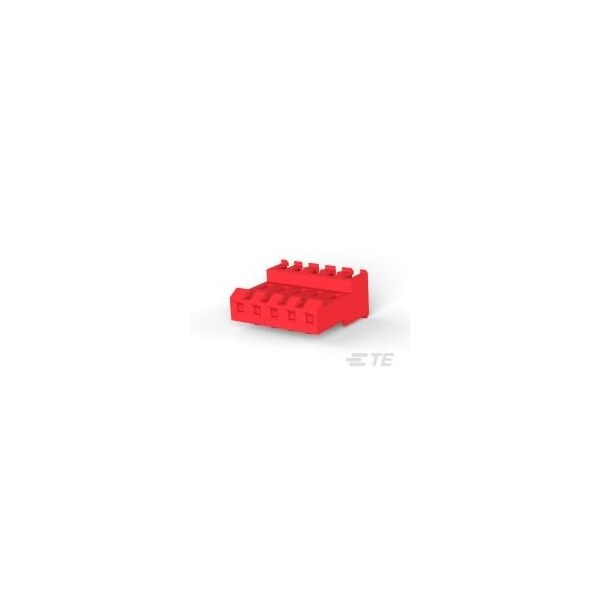

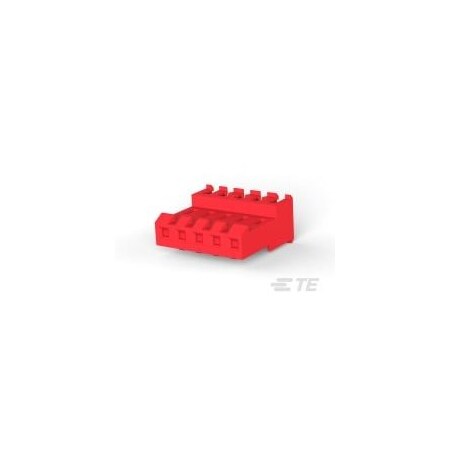

05P MTA156 CONN ASSY 22AWG LF
Mfr # 3-640601-5
Zoro # G800928228
product price: $0.90
/ea
Sold in multiples of 250 for $225.00
$225.00
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Wire Range 22 AWG
- Insulation Color Red
- Wire Type Stranded, Discrete Wire
- Connection Material Copper Alloy
- Connection Type Locking Lance, Insulation Displacement Crimp (IDC)
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Te Connectivity
- MFR # 3-640601-5
- Zoro # G800928228
- Country of Origin China
- Category Wire Terminals
Dimensions
Overall Length | 0.78 in |
Details
Wire Range | 22 AWG |
Insulation Color | Red |
Wire Type | Stranded, Discrete Wire |
Connection Material | Copper Alloy |
Connection Type | Locking Lance, Insulation Displacement Crimp (IDC) |
Standards | UL, CSA Listed |
Terminal Type | Socket |
Max. Voltage | 600V AC |
Max. Temp. | 221 Degrees F |
Features | Strain Relief |
Item | Connector Assembly |
Application | Power, Printed Circuit Board, Wire and Cable |
Mounting Type | Cable Mount |
Contact Plating Material | Nickel |
Insulation Dia | 0.095 in |
Terminal Orientation | 90 ° |
