Shop All Wire Terminals
Te Connectivity

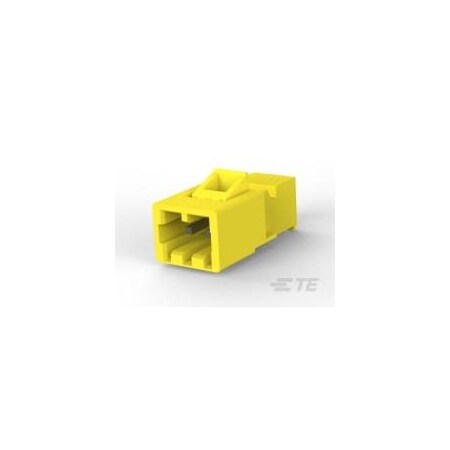

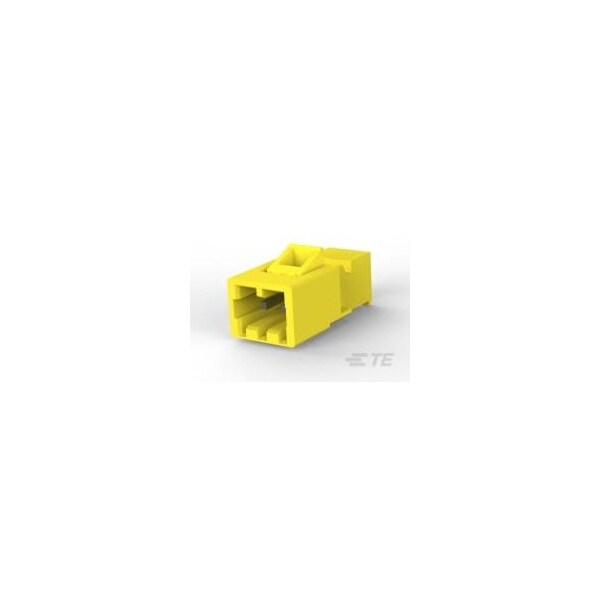

02P MTA156 CON ASSY LF
Mfr # 3-641436-2
Zoro # G700928731
product price: $1.25
/ea
Sold in multiples of 1250 for $1,562.50
$1,562.50
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Wire Range 20 AWG
- Insulation Color Yellow
- Standards UL, CSA Listed
- Wire Type Solid or Stranded, Discrete Wire
- Connection Type Locking Lance, Insulation Displacement Crimp (IDC)
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Te Connectivity
- MFR # 3-641436-2
- Zoro # G700928731
- Country of Origin China
- Category Wire Terminals
Dimensions
Overall Length | 11.89 mm |
Details
Wire Range | 20 AWG |
Insulation Color | Yellow |
Standards | UL, CSA Listed |
Wire Type | Solid or Stranded, Discrete Wire |
Connection Type | Locking Lance, Insulation Displacement Crimp (IDC) |
Features | Strain Relief |
Max. Temp. | 221 Degrees F |
Item | Connector Assembly |
Terminal Type | Pin |
Connection Material | Copper Alloy |
Max. Voltage | 600V AC |
Application | Power, Wire and Cable |
Contact Plating Material | Nickel |
Mounting Type | Cable Mount |
Terminal Orientation | 90 ° |
Insulation Dia | 0.095 in |
