Shop All PCB Connectors
Te Connectivity

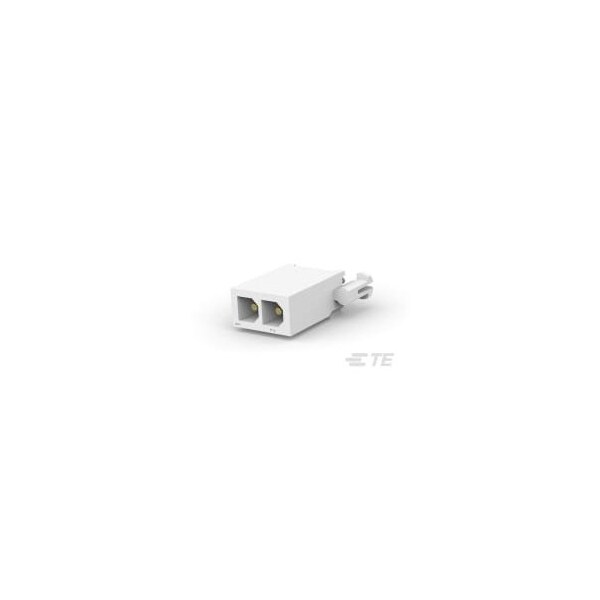

02P MINI UMNL ASSY VO SNAU LF
Mfr # 1-770166-1
Zoro # G101040766
product price: $1.65
/ea
Sold in multiples of 75 for $123.75
$123.75
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Color White
- For Use With Plug Housing
- Material Nylon
- Max. Voltage 600V AC/DC
- Application Power
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Te Connectivity
- MFR # 1-770166-1
- Zoro # G101040766
- Country of Origin United States
- Category PCB Connectors
Dimensions
Max. Insulation Dia. | 0.126 in |
Details
Item | Header |
Color | White |
For Use With | Plug Housing |
Material | Nylon |
Max. Voltage | 600V AC/DC |
Application | Power |
Standards | CSA Certified; UL E28476; UL Recognized |
Contact Plating Thickness | 0.76 µm |
Terminal Type | Through Hole - Solder |
Contact Type | Pin |
Number of Contacts | 2 |
Max. Temp. | 105°C |
Terminal Finish | Tin Plated |
Number of Rows | 1 |
Flammability Rating | UL 94 V-0 |
Current Rating | 9.5 A |
Hole Center to Center | 4.14 mm |
Contact Finish | Gold Plated |
Connector Terminates To | Printed Circuit Board |
