Shop All Hoist Rings
Te-Co

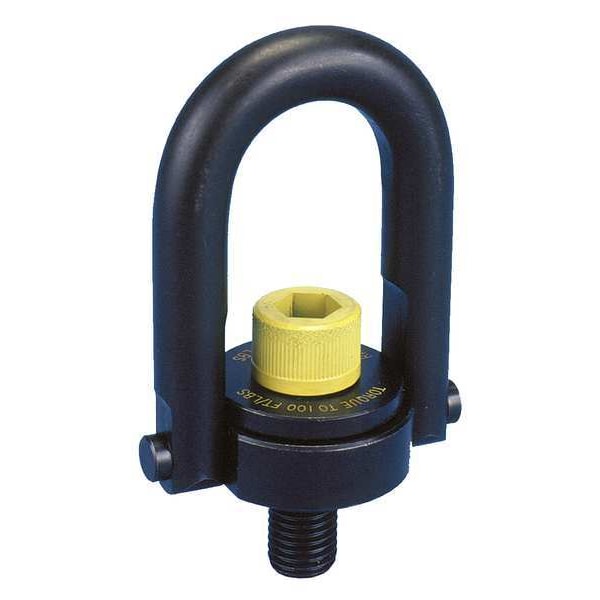

Hoist Ring, 10000lb, 1-8 Thread Size
Mfr # AK46212
Zoro # G8518562
Free Shipping & Returns
$307.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Mounting Style Screw-On
- Series Safety Engineered
- Pivot 180 Degrees
- Swivel Angle 360 Degrees
- Working Load Limit 10,000 lb
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Te-Co
- MFR # AK46212
- Zoro # G8518562
- Country of Origin United States
- Category Hoist Rings
Dimensions
Bail Dia. | 1 in |
Thread Size | 1"-8 |
Dimension F | 8 7/64 in |
Dimension a | 1 13/32 in |
Dimension d | 1 in |
Dimension E | 1 35/64 in |
Dimension C | 1 23/32 in |
Dimension B | 4 13/32 in |
Dimension D | 1 in |
Dimension A | 1 13/32 in |
Bail Inside Width | 3 in |
Overall Width | 5 1/8 in |
Overall Length | 5 1/8 in |
Bail Inside Length | 2 3/4 in |
Usable Thread Length | 1 1/2 in |
Description
Hoist Ring, Movement Type Pivot, Swivel, Material Alloy Steel, Mount Type Screw-On, Working Load Limit 10,000 lb, Thread Size 1 In.-8, Operation Lifting, Pulling, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 1 1/2 in, Bail Inside Length 2 3/4 in, Bail Inside Width 3 in, Bail Thickness 1 in, Overall Length 5 1/8 in, Overall Width 5 1/8 in, Hardware Included Removable Bolt, Minimum Installation Torque 230 ft-lb, Finish Black Oxide
