  9. Spin Index Fixture, 5-1/2inH, 8-15/16inL
Shop All Drill Bit Cases & Cabinets
Suburban

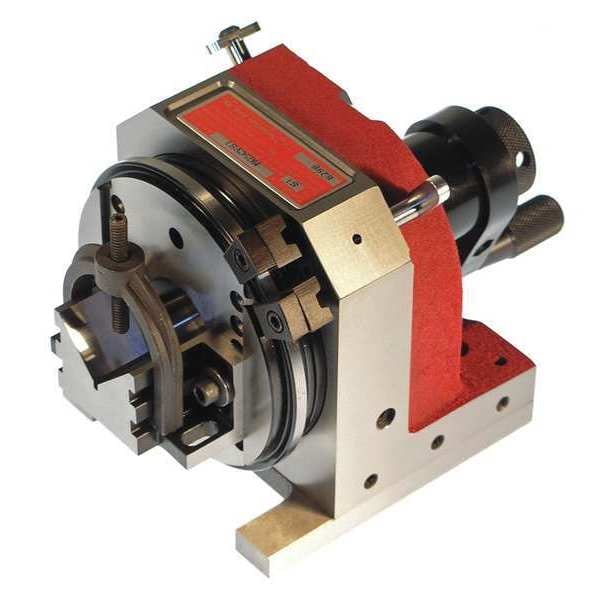

Spin Index Fixture, 5-1/2inH, 8-15/16inL

product price: $5,030.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Collet Capacity All 5C Collets
  • V-Block Capacity 1-5/8"
  • Through Hole Dia. 1-1/4"
  • Height to Spindle Centerline 3"
  • Overall Length 8-15/16 in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Through Hole Dia. 1-1/4"
Height to Spindle Centerline 3"
Overall Length 8-15/16 in
Overall Width 5"
Base Length 5 3/16 in
Base Width 5"
Overall Height 5-1/2 in

Details

Item Tool Holder Tightening Fixture
Collet Capacity All 5C Collets
V-Block Capacity 1-5/8"
Parallelism 0.0002"
Hard Stop Spacing 5 Degrees
Number of Indexing Positions 72
Max. Spindle Runout 0.00005"
Squareness 0.0002"
Includes Drawbar, Wooden Case
Features Horizontal or Vertical V-Block Mounting, Maximum Spindle Runout: 0.00005 in
Number of Positions 72

Description

Tool Holder Tightening Fixture, Number of Positions 72, Includes Drawbar, Wooden Case, Base Length 5 3/16 in
