  11. Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600 V, timed and instantaneous, 120 VAC 60 Hz coil
Shop All Cycle Timers
Square D

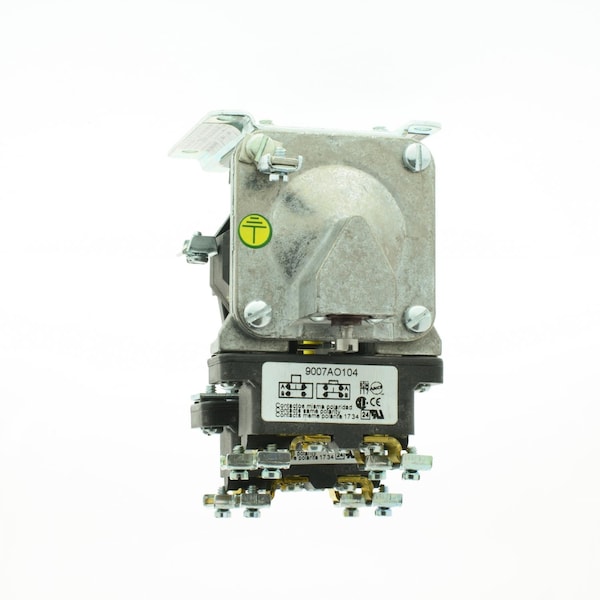

Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600 V, timed and instantaneous, 120 VAC 60 Hz coil

product price: $472.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting Type Panel Mount
  • Amps 15 A
  • Contact Form SPDT
  • Standards CSA; UL Listed
  • Depth 111 mm
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Depth 111 mm
Height 67 mm
Width 102 mm

Details

Item Pneumatic Timer,off delay,0.1 to 60 se
Mounting Type Panel Mount
Amps 15 A
Contact Form SPDT
Standards CSA; UL Listed
Features Mercury Free
Product or Component Type timer
Time Delay Type off-delay
Maximum Switching Voltage 600 V AC
Time Delay Range 0.1 s...1 min
[Uc] Control Circuit Voltage 120 V AC 60 Hz, 110 V AC 50 Hz
Mounting Support panel
Electrical Connection screw-clamp terminals
Reset Response Time 29 ms - on-delay, 27 ms - off-delay
Range of Product 9050A/H
Ambient Air Temperature For Operation 68-104°F
Contact Operation time delayed 1 NO + 1 NC, instantaneous 1 NO + 1 NC

Description

9050A NEMA pneumatic timers are designed for very rugged applications where precise timing is not required. This off delay timer has a timing range from 0.1 to 60 seconds. This timer has one normally open and one normally closed timed contact and one normally open and one normally closed instantaneous contact. They are controlled by a variety of VAC coils. This timer has a 110/120 VAC 50/60 Hz coil. 9050A pneumatic timers are UL listed and CSA certified.
