Square D

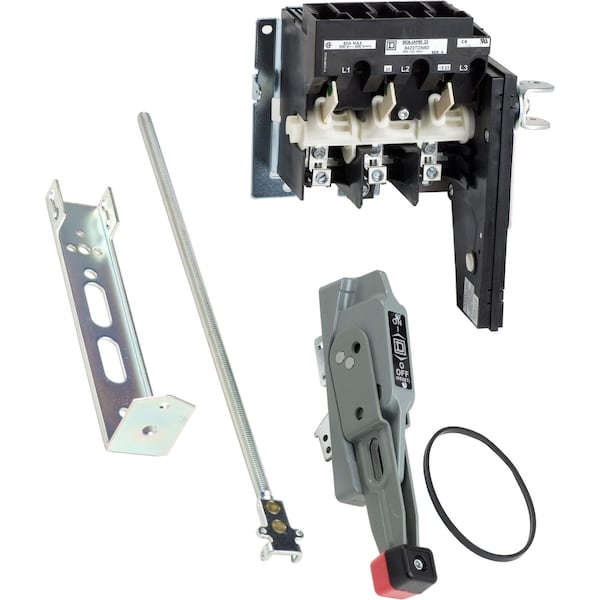

Switch A1 Handle+Mech No Fuse 60A 600Vac
Mfr # 9422ATDN601
Zoro # G0838656
Free Shipping & Returns
$534.93
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Product Certifications CSA || UL Recognized
- Maximum Horse Power Rating 15 hp 200 V AC || 15 hp 230 V AC || 30 hp 460 V AC || 50 hp 575 V AC || 10 hp 250 V DC
- Line Rated Current 60 A
- Disconnector Device Type non-fusible disconnect switch
- Product Or Component Type Disconnect Switch
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Square D
- MFR # 9422ATDN601
- Zoro # G0838656
- UPC # 785901872177
- Country of Origin Mexico
- Category Switch Accessories
Details
Item | Switch |
Product Certifications | CSA || UL Recognized |
Maximum Horse Power Rating | 15 hp 200 V AC || 15 hp 230 V AC || 30 hp 460 V AC || 50 hp 575 V AC || 10 hp 250 V DC |
Line Rated Current | 60 A |
Disconnector Device Type | non-fusible disconnect switch |
Product Or Component Type | Disconnect Switch |
Provided Equipment | 6 in handle included NEMA 1/3/3R/4 enclosures sheet steel |
Product Mounting | flange rod variable depth |
Horsepower Rating | 15 hp 200 V AC; 15 hp 230 V AC; 30 hp 460 V AC; 50 hp 575 V AC; 10 hp 250 V DC |
Certifications | CSA; UL Recognized |
Description
Switch
