Shop All Door Switches
Square D

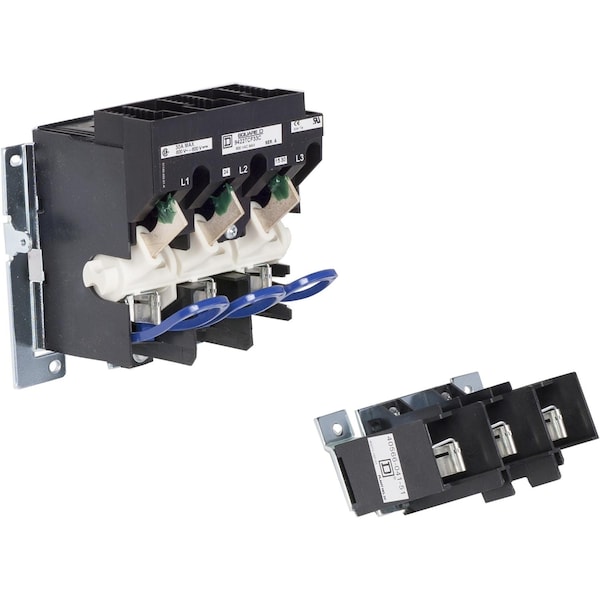

Operating mechanism, flange mounted, variable depth, 30A, 600V, H, K, J, R fuseholder, cable operated switch mechanism
Mfr # 9422TCF33C
Zoro # G0838857
product price: $430.99
/ea
Free Shipping & Returns
$430.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Associated Fuse Rating 60 A 250 V || 30 A 600 V
- Product Mounting flange cable variable depth
- Disconnector Device Type fusible disconnect switch
- Maximum Horse Power Rating 7.5 hp 200 V AC || 7.5 hp 230 V AC || 15 hp 460 V AC || 20 hp 575 V AC || 5 hp 250 V DC
- Line Rated Current 30 A
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Square D
- MFR # 9422TCF33C
- Zoro # G0838857
- UPC # 785901696995
- Country of Origin Mexico
- Category Door Switches
Details
Item | Cable Optic Disconnect Switch |
Associated Fuse Rating | 60 A 250 V || 30 A 600 V |
Product Mounting | flange cable variable depth |
Disconnector Device Type | fusible disconnect switch |
Maximum Horse Power Rating | 7.5 hp 200 V AC || 7.5 hp 230 V AC || 15 hp 460 V AC || 20 hp 575 V AC || 5 hp 250 V DC |
Line Rated Current | 30 A |
Product Or Component Type | Disconnect Switch |
Product Certifications | CSA || UL Recognized |
Fuse Type | H || R || K || J |
Provided Equipment | ordered separately |
Certifications | CSA; UL Recognized |
Horsepower Rating | 7.5 hp 200 V AC; 7.5 hp 230 V AC; 15 hp 460 V AC; 20 hp 575 V AC; 5 hp 250 V DC |
Fuse Rating | 60 A 250 V; 30 A 600 V |
Range of Product | 9422T |
Description
9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 60 Amps up to 250 V and 30 Amps up to 600 V. This 30 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 7.5 HP at 208 VAC, 7.5 HP at 240 VAC, 15 HP at 480 VAC and 20 HP at 600 VAC. Switch is also rated for 5 HP at 250 VDC and 15 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles or cable operator. Handle is to be ordered seoparately. Disconnect switch lugs are rated for #14 to #2 AWG with copper wire and #10 to #2 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified
