Square D

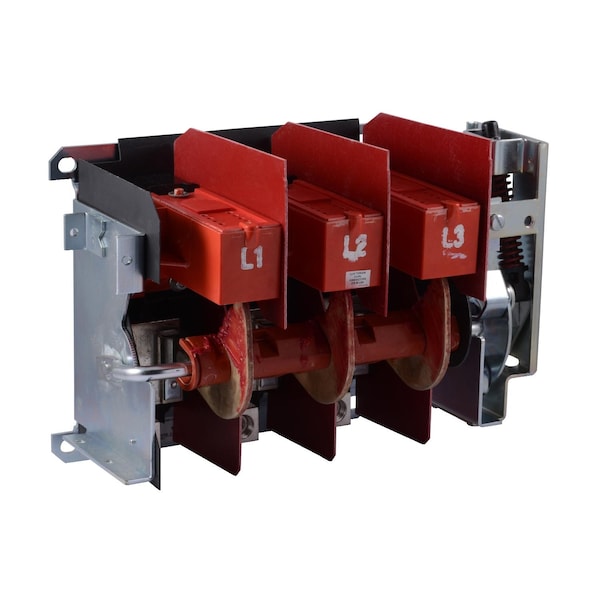

Operating mechanism, flange mounted, variable depth, 200A, 600V, no fuse, switch mechanism, 6 inch handle, NEMA 4
Mfr # 9422ATF11
Zoro # G0838960
product price: $1,484.99
/ea
Free Shipping & Returns
$1,484.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Provided Equipment 6 in handle included NEMA 1/3/3R/4 enclosures sheet steel
- Maximum Horse Power Rating 40 hp 200 V AC || 60 hp 230 V AC || 125 hp 460 V AC || 150 hp 575 V AC || 40 hp 250 V DC || 50 hp 600 V DC
- Product Or Component Type Disconnect Switch
- Line Rated Current 200 A
- Product Mounting flange rod variable depth
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Square D
- MFR # 9422ATF11
- Zoro # G0838960
- UPC # 785901120308
- Country of Origin Mexico
- Category Door Switches
Details
Item | Disconnect Switch |
Provided Equipment | 6 in handle included NEMA 1/3/3R/4 enclosures sheet steel |
Maximum Horse Power Rating | 40 hp 200 V AC || 60 hp 230 V AC || 125 hp 460 V AC || 150 hp 575 V AC || 40 hp 250 V DC || 50 hp 600 V DC |
Product Or Component Type | Disconnect Switch |
Line Rated Current | 200 A |
Product Mounting | flange rod variable depth |
Disconnector Device Type | non-fusible disconnect switch |
Product Certifications | UL Recognized || CSA |
Certifications | UL Recognized; CSA |
Horsepower Rating | 40 hp 200 V AC; 60 hp 230 V AC; 125 hp 460 V AC; 150 hp 575 V AC; 40 hp 250 V DC; 50 hp 600 V DC |
Range of Product | 9422T |
Description
9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch is without fuse clips. This 200 A disconnect switch is designed for flange mounting. The variable depth mounting range is 9.12 to 19.25 inches. Disconnect switch has horsepower ratings of 40 HP at 208 VAC, 60 HP at 240 VAC, 125 HP at 480 VAC and 150 HP at 600 VAC. Switch is also rated for 40 HP at 250 VDC and 50 HP at 600 VDC when using two poles. 9422A1 operating handle is overpacked with this disconnect switch. Disconnect switch lugs are rated for #6 AWG to 300 kcmil with copper or aluminum wire. Disconnect switch is UL Component Recognized and CSA certified
