Square D

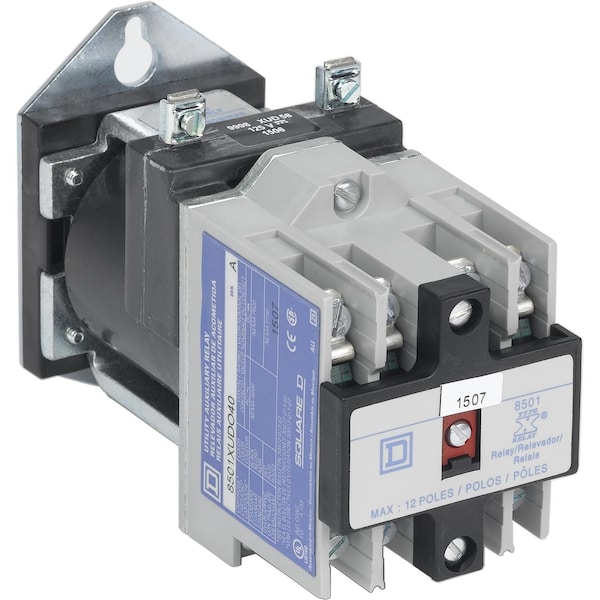

NEMA Control Relay, Type X, utility, 10A resistive at 600 VAC, 4 normally open contacts, 24 VDC coil
Mfr # 8501XUDO40V53
Zoro # G5523945
Free Shipping & Returns
$397.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Depth 5.17 in
- Height 3.56 in
- Width 2.23 in
- Ambient Air Temperature For Operation -40-160°F
- [Uc] Control Circuit Voltage 24 V DC
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Square D
- MFR # 8501XUDO40V53
- Zoro # G5523945
- UPC # 785901152460
- Country of Origin Mexico
- Category Control Relays
Dimensions
Depth | 5.17 in |
Height | 3.56 in |
Width | 2.23 in |
Details
Item | NEMA Control Relay,utility relay,4 NO |
Ambient Air Temperature For Operation | -40-160°F |
[Uc] Control Circuit Voltage | 24 V DC |
Poles Description | 4P |
Maximum Switching Voltage | 250 V DC |
Line Rated Current | 10 A AC || 5 A DC |
Product Or Component Type | relay |
Operating Time | 37 ms - pick-up || 21 ms - drop-out |
Contacts Type And Composition | 4 NO 4 standard contact cartridges |
Electrical Connection | screw clamp terminals |
Mounting Support | panel |
Product Certifications | UL Listed || CE || CSA |
Relay Type | utility |
Range of Product | 8501X |
Description
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.
