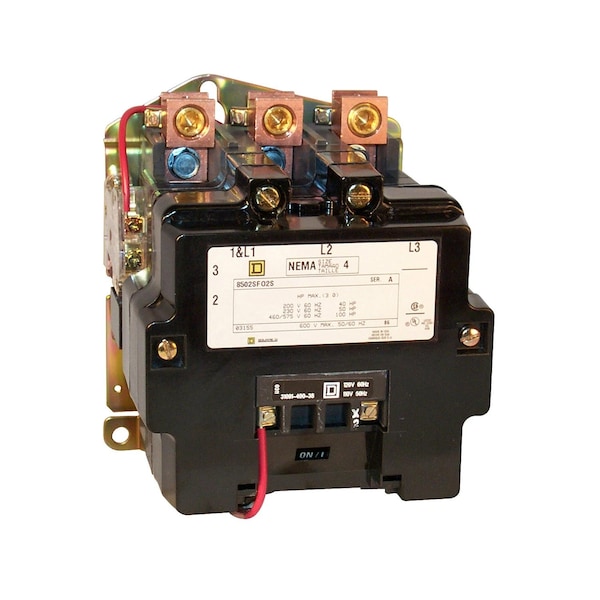

NEMA Contactor, Type S, nonreversing, Size 4, 135A, 1 phase, up to 100kA, 2 pole, 480VAC coil, open

Mfr # 8502SFO1V06
Zoro # G0848027

$2,530.00

10% off

$2,262.73

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Full Load Amps 135
Action Non-Reversing
Number of Poles 2
Coil Volts 600VAC
Height 208.03 mm

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Square D
MFR # 8502SFO1V06
Zoro # G0848027
UPC #
785901831532
Country of Origin Mexico
Category Magnetic Contactors

Dimensions

Height	208.03 mm
Width	152.40 mm
Depth	165.10 mm
NEMA Size	4

Details

Item	Contactor
Full Load Amps	135
Action	Non-Reversing
Number of Poles	2
Coil Volts	600VAC
Contactor Application	non-reversing
Product Certifications	UL listed file E78351 CCN NLDX \|\| CSA
Local Signalling	no indicator
Control Type	no control units
Control Circuit	common control circuit
Poles Description	2P
Product Compatibility	circuit-breaker 225 A maximum, SCCR: 100 kA at 480 V AC \|\| fuse J 200 A maximum, SCCR: 100 kA at 600 V AC \|\| fuse T 200 A maximum, SCCR: 100 kA at 600 V AC \|\| fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC \|\| fuse RK5 200 A maximum, SCCR: 100 kA at 600 V AC
[Uc] Control Circuit Voltage	480 V AC 60 Hz \|\| 440 V AC 50 Hz
Nema Degree Of Protection	not rated (open device)
Electrical Connection	screw clamp terminals
Line Rated Current	135 A
Product Or Component Type	contactor
Phase	1 phase
Rated Power In Hp	not rated
Auxiliary Contact Composition	without
[Ue] Rated Operational Voltage	600 V AC
Certifications	UL listed file E78351 CCN NLDX; CSA
Coil Voltage	480 V AC 60 Hz; 440 V AC 50 Hz
Short Circuit Current Rating	Circuit-breaker 225 A maximum, SCCR: 100 kA at 480 V AC; Fuse J 200 A maximum, SCCR: 100 kA at 600 V AC; Fuse T 200 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK5 200 A maximum, SCCR: 100 kA at 600 V AC
Range of Product	8502S
Provided Equipment	fuse not supplied

Description

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 2 pole NEMA Size 4 non-reversing contactor has a 135 ampere rating. Single phase NEMA Size 4 contactors have no horsepower ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 440/480 VAC 50/60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 8.19 inches tall, 6.00 inches wide and 6.50 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
