  9. Meter Main, SU, 30 Spaces, 400A; 200A, Main Lug
Shop All Panelboards, Load Centers, & Circuit Breaker Enclosures
Square D

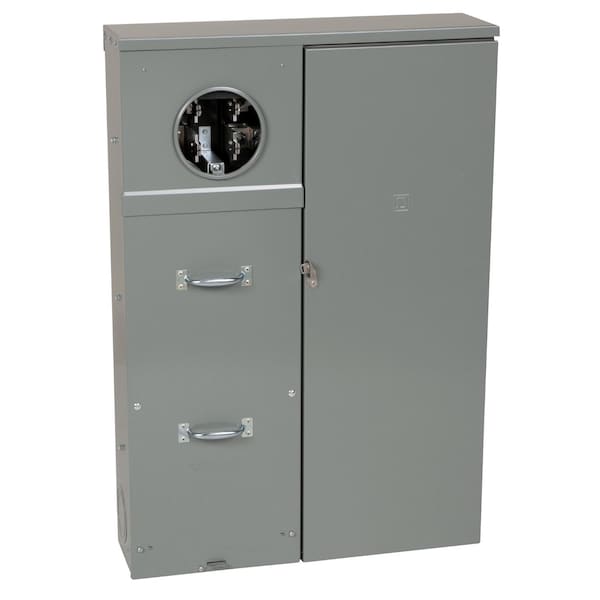

Meter Main, SU, 30 Spaces, 400A; 200A, Main Lug

product price: $7,330.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Main Circuit Breaker or Main Lug Main Lug
  • Number of Spaces 30
  • Amps 400A; 200A
  • Circuit Breaker Type Homeline
  • Short Circuit Current Rating 25kA
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Height 41.25 in
Width 28.25 in
Depth 7.50 in
Wire Size AWG 4...250 kcmil aluminium)service ground || AWG 4...250 kcmil copper)service ground

Details

Item Meter Main
Main Circuit Breaker or Main Lug Main Lug
Number of Spaces 30
Amps 400A; 200A
Circuit Breaker Type Homeline
Short Circuit Current Rating 25kA
Max. No. of Tandem Breakers 10
Series SU
Enclosure NEMA Rating NEMA 3R
Mounting Style surface || semi flush field installed flange kit
Standards UL Listed
Tightening Torque terminal screw 250 lb.in, AWG 4...250 kcmil, aluminium/copper || service ground 50 lb.in, AWG 1/0, aluminium/copper || service ground 45 lb.in, AWG 6...AWG 1, aluminium/copper || service ground 40 lb.in, AWG 8, aluminium/copper || branch lugs 50 lb.in, AWG 3...AWG 2/0, aluminium/copper || branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper || branch lugs 25 lb.in, AWG 8, aluminium/copper || branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper || branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper || Cover 10 lb.in
Electrical Connection lugs service ground || studs line side
Hub type A-L
Number Of Circuits 40
Bypass Type class 320 manual bypass
Service Disconnect Rated Current 200 A
Ground Bar Kit service disconnect (factory installed)
Meter Socket Type ringed
Number Of Spaces 30

Description

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W-P-115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with a Class 320 Manual bypass. The socket has 4 jaws. This unit can be feed from an underground service. The service disconnect is a QDL22200 with a maximum rating of 200 A. Device has a 25 kA short circuit current rating. Load center has 30 spaces which will accept up to 10 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mount enclosure that is 41.25 inches tall, 28.25 inches wide and 7.50 inches deep. The line side has two studs. The service ground lug will accept 4 AWG to 250 kcmil copper or aluminum wire. This Homeline All In One combination service entrance unit is UL Listed.
