Square D
Meter Main, QO, 8 Spaces, 400A; 150A, Main Lug, 1 Phase
Mfr # QU816D400SL150
Zoro # G4608280
product price: $3,637.99
/ea
Free Shipping & Returns
$3,637.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Main Circuit Breaker or Main Lug Main Lug
- Number of Spaces 8
- Phase 1
- Circuit Breaker Type QO
- Short Circuit Current Rating 25kA
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Square D
- MFR # QU816D400SL150
- Zoro # G4608280
- UPC # 785901507437
- Country of Origin Mexico
- Category Panelboards, Load Centers, & Circuit Breaker Enclosures
Dimensions
Height | 43 in |
Width | 28.25 in |
Depth | 7.87 in |
Wire Size | AWG 4...250 kcmil aluminium/copper)service ground |
Details
Item | Meter Main |
Main Circuit Breaker or Main Lug | Main Lug |
Number of Spaces | 8 |
Amps | 400A; 150A |
Phase | 1 |
Circuit Breaker Type | QO |
Short Circuit Current Rating | 25kA |
Max. No. of Tandem Breakers | 8 |
Series | QO |
Standards | UL E-6294 |
Mounting Style | surface |
Service Disconnect Rated Current | 150 A |
Meter Socket Type | ringless |
Bypass Type | class 320 lever bypass |
Hub type | A-L |
Electrical Connection | studs line side || feed-thru lugs service ground |
Ground Bar Kit | service disconnect (factory installed) |
Number Of Spaces | 8 |
Number Of Circuits | 16 |
Description

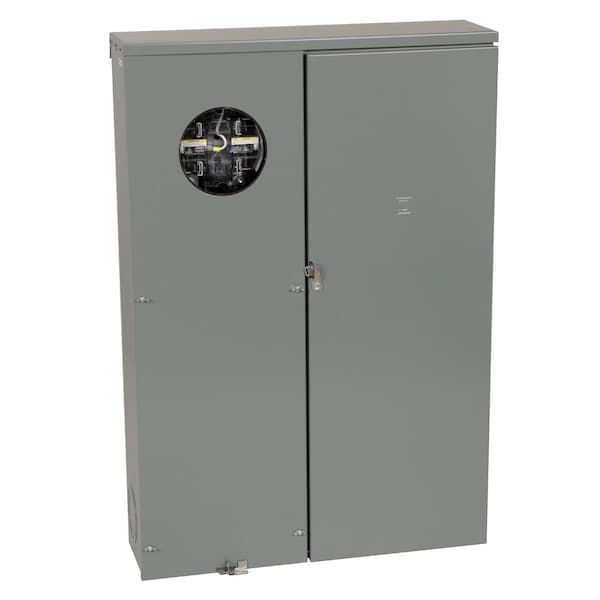

Square D meter mains devices are single phase power distribution panels ideal for residential use for when the local codes require the service disconnect to be located outside the dwelling. These devices come with a meter socket that supports a standard utility meter and a main disconnect breaker and include provisions for field installation of service disconnect(s) to feed downstream devices. Square D meter mains products are single compact solution provides a time and space saving solution for contractors and installers as well as meet a wide range of applications in use today. This meter main is designed for QO range, has is rated at 400A but has a service disconnect rated at 150 A and has a short circuit current rating of 25 kA. This device has a lever bypass type, uses a ringless meter socket type and can only be service feed underground. This CSED uses studs on the line side and uses lugs on the service ground side of the device, has a wire range of 4 AWG“250 kcmil on the service ground side. The dimensions for this product are 43.00 in (H) x 28.25 in (W) x 7.87 in (D).
