Shop All Panelboards, Load Centers, & Circuit Breaker Enclosures
This Product is Discontinued
Square D

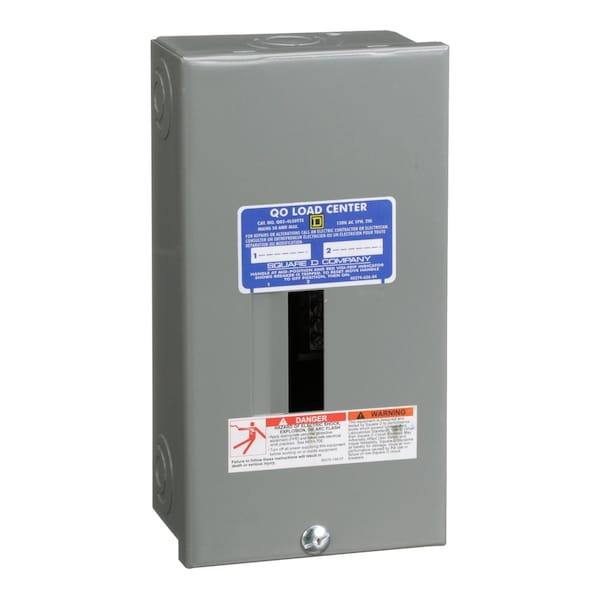

Load Center, QO24, 2 Spaces, 50, 120/240 V AC, Main Lug, 1 Phase (Discontinued)
Mfr # QO24L50TTS
Zoro # G0856655
This Product is Discontinued
Key Features
- Main Circuit Breaker or Main Lug Main Lug
- Number of Spaces 2
- Amps 50
- Voltage 120/240 V AC
- Phase 1
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Square D
- MFR # QO24L50TTS
- Zoro # G0856655
- UPC # 785901785163
- Country of Origin Mexico
- Category Panelboards, Load Centers, & Circuit Breaker Enclosures
Dimensions
| Height | 236 mm |
| Width | 122 mm |
| Wire Size | AWG 14...AWG 6 copper |
Details
| Item | Load Center |
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 2 |
| Amps | 50 |
| Voltage | 120/240 V AC |
| Phase | 1 |
| Circuit Breaker Type | QO |
| Short Circuit Current Rating | 10 kA |
| Max. No. of Tandem Breakers | 2 |
| Series | QO24 |
| Enclosure Material | welded sheet steel |
| Enclosure NEMA Rating | NEMA 1 indoor |
| Bus Material | tin plated aluminium busbar |
| Standards | CSA |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Wiring Configuration | 2-wire |
| Cover Type | surface cover |
| Ground Bar Kit | grounding bar (factory installed) |
| Electrical Connection | lugs |
| Tightening Torque | main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper || main lugs 40 lb.in, AWG 8...AWG 4, aluminium/copper |
| Number Of Circuits | 4 |
Description
Load Center Qo Mlo 50A 1Ph 2Sp
