Square D

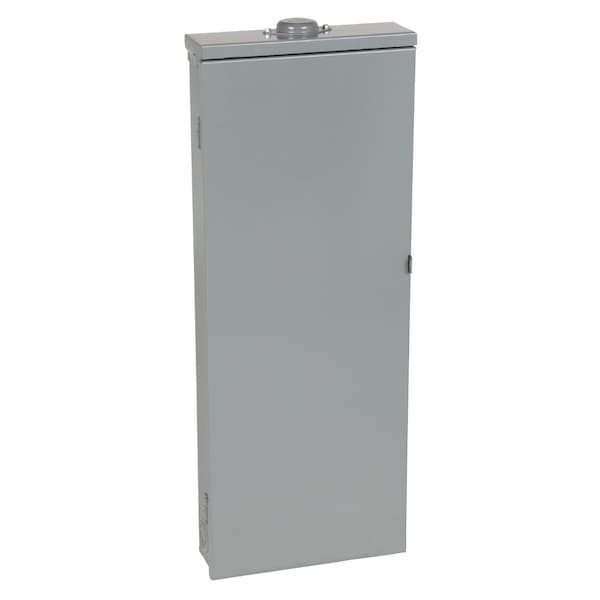

Load Center, QO, 42 Spaces, 200A, PoN Convertible Main Breaker, 1 Phase
Mfr # QO142M200PRB
Zoro # G3309272
Free Shipping & Returns
$1,577.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Main Circuit Breaker or Main Lug PoN Convertible Main Breaker
- Number of Spaces 42
- Amps 200A
- Phase 1
- Short Circuit Current Rating 22kA
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Square D
- MFR # QO142M200PRB
- Zoro # G3309272
- UPC # 785901285083
- Country of Origin Mexico
- Category Panelboards, Load Centers, & Circuit Breaker Enclosures
Dimensions
Height | 965 mm |
Width | 375 mm |
Wire Size | AWG 4...250 kcmil aluminium/copper |
Details
Item | Load Center |
Main Circuit Breaker or Main Lug | PoN Convertible Main Breaker |
Number of Spaces | 42 |
Amps | 200A |
Phase | 1 |
Short Circuit Current Rating | 22kA |
Max. No. of Tandem Breakers | 10 |
Series | QO |
Recommended Surface Cover | Included |
Enclosure Material | Galvanized Steel |
Enclosure NEMA Rating | NEMA 3R |
Bus Material | Copper |
Standards | UL Listed |
Finish | Baked Enamel |
Wiring Configuration | 3-wire |
Number Of Circuits | 52 |
Primary/Ambient Air Temp. | -5°C || 40°C |
Electrical Connection | lugs |
Cover Type | surface cover |
Ground Bar Kit | grounding bar (ordered separately) |
Enclosure Type | weatherproof enclosure |
Description
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Load Center contains a main breaker and is rated at 200 A and 1 phase. This system provides 42 spaces in a NEMA 3R enclosure and is hub ready. Load center is plug on neutral ready. This 1 phase load center has 42 spaces and 52 circuits. This system provides a 200A convertible main breaker in a NEMA 3R enclosure. It also includes plug on neutral and is UL rated.
