Square D

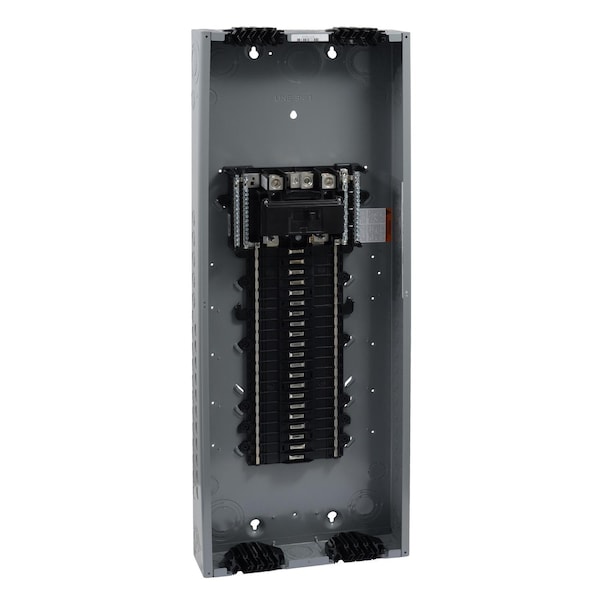

Load Center, QO, 42 Spaces, 200A, 120/240V AC, PoN Convertible Main Breaker, 1 Phase
Mfr # QO142M200PQ
Zoro # G3308992
product price: $334.99
/ea
Free Shipping & Returns
$334.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Main Circuit Breaker or Main Lug PoN Convertible Main Breaker
- Number of Spaces 42
- Amps 200A
- Voltage 120/240V AC
- Phase 1
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Square D
- MFR # QO142M200PQ
- Zoro # G3308992
- Country of Origin United States
- Category Panelboards, Load Centers, & Circuit Breaker Enclosures
Dimensions
| Height | 1000 mm |
| Width | 362 mm |
| Depth | 95 mm |
| Wire Size | AWG 4...300 kcmil aluminium/copper |
Details
| Item | Load Center |
| Main Circuit Breaker or Main Lug | PoN Convertible Main Breaker |
| Number of Spaces | 42 |
| Amps | 200A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Short Circuit Current Rating | 22kA |
| Series | QO |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Bus Material | Copper |
| Max. No. of Tandem Breakers | 10 |
| Standards | UL Listed |
| Finish | Baked Enamel |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Tightening Torque | Cover 20 lb.in |
| Ground Bar Kit | grounding bar (ordered separately); qwik grip assembly kit 1 ) |
| Number Of Circuits | 52 |
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 42 spaces and 52 circuits. This system provides a 200A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral, Qwik-grip, and is UL rated. QO load center is UL Listed.
