Shop All Panelboards, Load Centers, & Circuit Breaker Enclosures
Square D

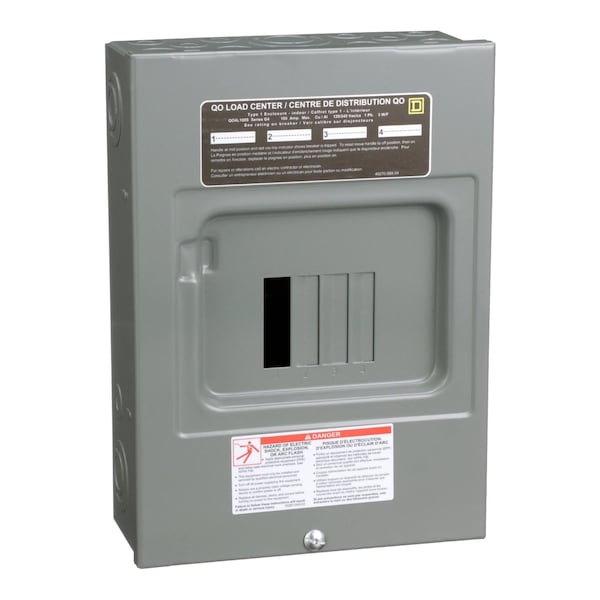

Load Center, QO, 4 Spaces, 100A, 120/240V AC, Fixed Main Lug, 1 Phase
Mfr # QO4L100S
Zoro # G4055323
product price: $87.59
/ea
Free Shipping & Returns
$87.59
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Main Circuit Breaker or Main Lug Fixed Main Lug
- Number of Spaces 4
- Amps 100A
- Voltage 120/240V AC
- Phase 1
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Square D
- MFR # QO4L100S
- Zoro # G4055323
- Country of Origin Mexico
- Category Panelboards, Load Centers, & Circuit Breaker Enclosures
Dimensions
Height | 319 mm |
Width | 226 mm |
Depth | 95 mm |
Details
Item | Load Center |
Main Circuit Breaker or Main Lug | Fixed Main Lug |
Number of Spaces | 4 |
Amps | 100A |
Voltage | 120/240V AC |
Phase | 1 |
Short Circuit Current Rating | 10kA |
Series | QO |
Recommended Surface Cover | Included |
Enclosure NEMA Rating | NEMA 1 |
Bus Material | Aluminum |
Max. No. of Tandem Breakers | 0 |
Standards | CSA |
Cover Type | surface cover |
Ground Bar Kit | grounding bar (ordered separately) |
Tightening Torque | Cover 20 lb.in |
Wiring Configuration | 3-wire |
Electrical Connection | lugs |
Primary/Ambient Air Temp. | -5°C || 40°C |
Number Of Circuits | 4 |
Description
QO load centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO load centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO load centers feature plated copper bus, providing superior performance and durability. This single phase QO load center has fixed mains and is rated at 100 A at 120/240 VAC. This QO load center has a 10 kA breaking capacity. This system provides 4 spaces in a NEMA 1 enclosure. This load center has a surface cover. The lugs will accept 8 AWG to 1 AWG copper or aluminum wire. The load center is 12.56 inches tall, 8.90 inches wide and 3.74 inches deep. The load center is CSA certified.
