Square D

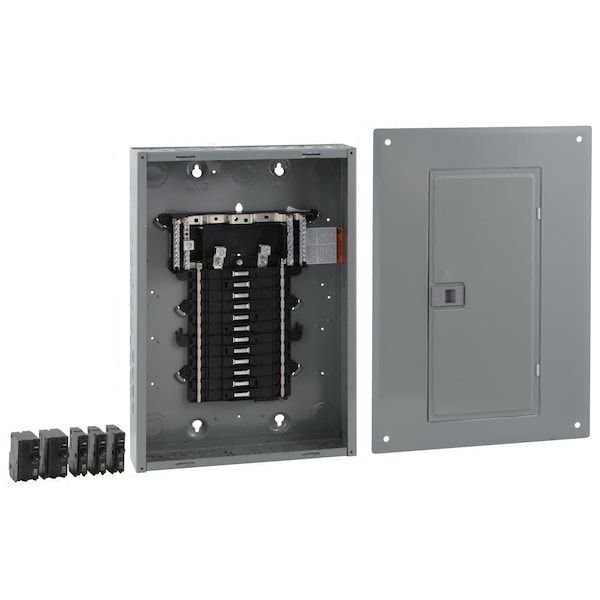

Load Center, QO, 24 Spaces, 125A, PoN Convertible Main Lug, 1 Phase
Mfr # QO124L125PGCVP
Zoro # G3306719
product price: $738.99
/ea
Free Shipping & Returns
$738.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Main Circuit Breaker or Main Lug PoN Convertible Main Lug
- Number of Spaces 24
- Amps 125A
- Phase 1
- Short Circuit Current Rating 65kA
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Square D
- MFR # QO124L125PGCVP
- Zoro # G3306719
- UPC # 785901978220
- Country of Origin Mexico
- Category Panelboards, Load Centers, & Circuit Breaker Enclosures
Dimensions
Height | 531 mm |
Width | 362 mm |
Wire Size | AWG 6...AWG 2/0 aluminium/copper |
Details
Item | Load Center |
Main Circuit Breaker or Main Lug | PoN Convertible Main Lug |
Number of Spaces | 24 |
Amps | 125A |
Phase | 1 |
Short Circuit Current Rating | 65kA |
Max. No. of Tandem Breakers | 0 |
Series | QO |
Included Enclosure Cover | Combination |
Enclosure Material | Steel |
Enclosure NEMA Rating | NEMA 1 |
Bus Material | Copper |
Standards | UL Listed |
Finish | Baked Enamel |
Wiring Configuration | 3-wire |
Number Of Circuits | 24 |
Primary/Ambient Air Temp. | -5°C || 40°C |
Cover Type | combination flush/surface cover |
Ground Bar Kit | grounding bar included (not installed); load center 1 ) 24P 125 A 120/240 V AC || circuit-breaker 3 ) 1P 20 A 120 V AC downstream || circuit-breaker 2 ) 2P 30 A 120/240 V AC downstream |
Tightening Torque | main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper |
Electrical Connection | lugs |
Description
QO Circuit Breaker Load Centers, QO124L125PGCVP, from Square D are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 24 spaces and 24 circuits. This system provides 125A convertible main lugs in a NEMA 1 enclosure. It also includes plug on neutral, ground bar, and is UL rated. This product is a value pack.
