Shop All Panelboards, Load Centers, & Circuit Breaker Enclosures
Square D

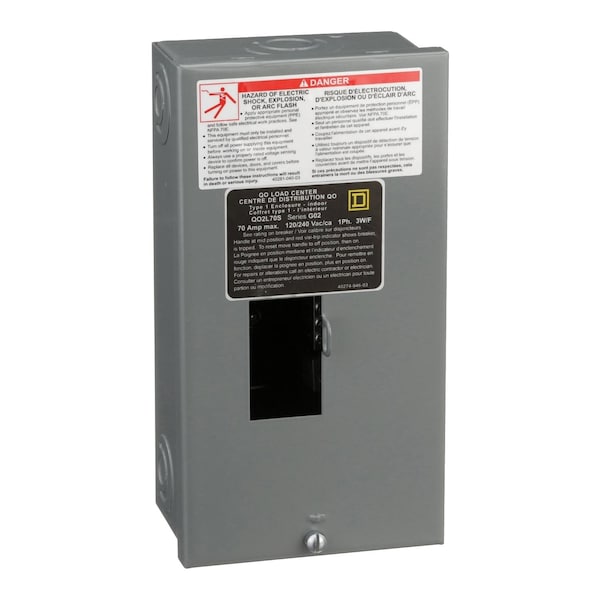

Load Center, QO, 2 Spaces, 70A, 120/240V AC, Fixed Main Lug, 1 Phase
Mfr # QO2L70S
Zoro # G4055332
product price: $67.29
/ea
$67.29
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Main Circuit Breaker or Main Lug Fixed Main Lug
- Number of Spaces 2
- Amps 70A
- Voltage 120/240V AC
- Phase 1
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Square D
- MFR # QO2L70S
- Zoro # G4055332
- Country of Origin Mexico
- Category Panelboards, Load Centers, & Circuit Breaker Enclosures
Dimensions
Height | 233 mm |
Width | 119 mm |
Depth | 79 mm |
Details
Item | Load Center |
Main Circuit Breaker or Main Lug | Fixed Main Lug |
Number of Spaces | 2 |
Amps | 70A |
Voltage | 120/240V AC |
Phase | 1 |
Short Circuit Current Rating | 10kA |
Series | QO |
Recommended Surface Cover | Included |
Enclosure Material | Steel |
Enclosure NEMA Rating | NEMA 1 |
Bus Material | Aluminum |
Standards | cULus |
Max. No. of Tandem Breakers | 0 |
Primary/Ambient Air Temp. | -5°C || 40°C |
Electrical Connection | lugs |
Wiring Configuration | 3-wire |
Cover Type | surface cover |
Number Of Circuits | 2 |
Ground Bar Kit | grounding bar (ordered separately) |
Description
QO load centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO load centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO load centers feature plated copper bus, providing superior performance and durability. This single phase QO load center has fixed mains and is rated at 70 A at 120/240 VAC. This QO load center has a 10 kA breaking capacity. This system provides 2 spaces in a NEMA 1 enclosure. This load center has a surface cover. The lugs will accept 14 AWG to 4 AWG copper wire or 12 AWG to 3 AWG aluminum wire. The load center is 9.17 inches tall, 4.69 inches wide and 3.11 inches deep. The load center is CSA certified.
