Shop All Panelboards, Load Centers, & Circuit Breaker Enclosures
Square D

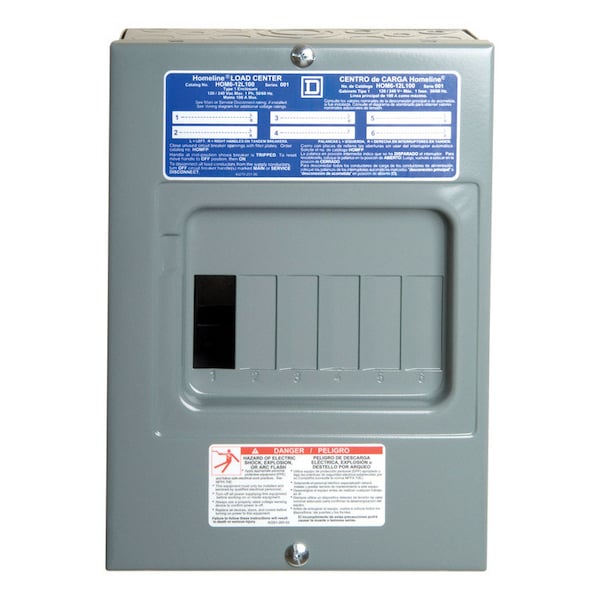

Load Center, HOM, 6 Spaces, 100A, 120/240V AC, Main Lug, 1 Phase
Mfr # HOM612L100SCP
Zoro # G2918821
product price: $35.45
/ea
$35.45
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Main Circuit Breaker or Main Lug Main Lug
- Number of Spaces 6
- Amps 100A
- Voltage 120/240V AC
- Phase 1
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Square D
- MFR # HOM612L100SCP
- Zoro # G2918821
- UPC # 47569071232
- Country of Origin United States
- Category Panelboards, Load Centers, & Circuit Breaker Enclosures
Dimensions
| Height | 319 mm |
| Width | 226 mm |
| Depth | 97 mm |
Details
| Item | Load Center |
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 6 |
| Amps | 100A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Short Circuit Current Rating | 10kA |
| Series | HOM |
| Included Enclosure Cover | Combination |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Bus Material | Aluminum |
| Finish | Baked Enamel |
| Ambient Air Temperature For Operation | -5 2°C || 40 2°C |
| Awg Gauge | AWG 8...AWG 1 copper or aluminium |
| Number Of Tandem Circuit Breakers | 6 |
| Number Of Circuits | 12 |
| Cover Type | combination flush/surface cover |
| Wiring Configuration | 3-wire |
| Line Rated Current | 100 A |
| Product Certifications | UL listed file E-6294 |
Description
Homeline plug-on neutral load centers offer time-savings for plug-on neutral combination arc fault (CAFI) and dual function circuit breaker installation. Innovative split neutrals are designed to save you time and wire allowing plug-on neutral circuit breakers to connect directly to the neutral bar without the pigtail. Coupled with the state-of-the-art design neutral bars are now fully-distributed accepting plug-on neutral circuit breakers on any space.
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
