Square D

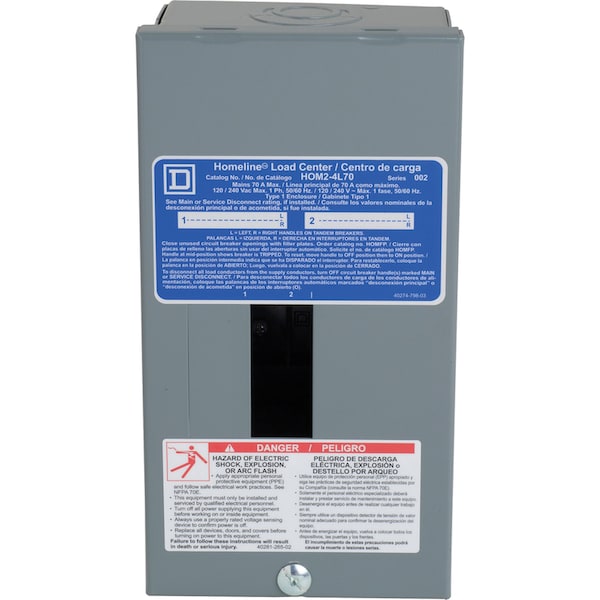

Load Center, HOM, 2 Spaces, 70A, 120/240V AC, Main Lug, 1 Phase
Mfr # HOM24L70SCP
Zoro # G2916548
product price: $26.39
/ea
$26.39
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Main Circuit Breaker or Main Lug Main Lug
- Number of Spaces 2
- Amps 70A
- Voltage 120/240V AC
- Phase 1
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Square D
- MFR # HOM24L70SCP
- Zoro # G2916548
- UPC # 47569071201
- Country of Origin Mexico
- Category Panelboards, Load Centers, & Circuit Breaker Enclosures
Dimensions
Height | 236 mm |
Width | 122 mm |
Depth | 81 mm |
Details
Item | Load Center |
Main Circuit Breaker or Main Lug | Main Lug |
Number of Spaces | 2 |
Amps | 70A |
Voltage | 120/240V AC |
Phase | 1 |
Short Circuit Current Rating | 10kA |
Series | HOM |
Recommended Surface Cover | Included |
Enclosure Material | Steel |
Enclosure NEMA Rating | NEMA 1 |
Bus Material | Aluminum |
Finish | Baked Enamel |
Line Rated Current | 70 A |
Product Certifications | UL listed file E-6294 |
Ambient Air Temperature For Operation | -5 2°C || 40 2°C |
Wiring Configuration | 3-wire |
Cover Type | surface cover |
Awg Gauge | AWG 12...AWG 3 aluminium || AWG 14...AWG 4 copper |
Number Of Circuits | 4 |
Number Of Tandem Circuit Breakers | 2 |
Description
Homeline plug-on neutral load centers offer time-savings for plug-on neutral combination arc fault (CAFI) and dual function circuit breaker installation. Innovative split neutrals are designed to save you time and wire allowing plug-on neutral circuit breakers to connect directly to the neutral bar without the pigtail. Coupled with the state-of-the-art design neutral bars are now fully-distributed accepting plug-on neutral circuit breakers on any space.
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
