Shop All Lighting Contactors
Square D

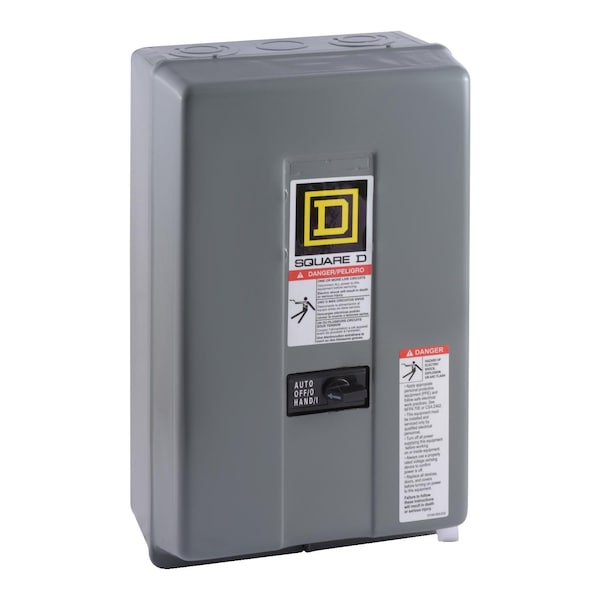

Contactor, Type LX multipole lightling, mechanically held, 30A, 4 pole, 600V, 110/120VAC 50/60Hz coil, NEMA 1
Mfr # 8903LXG40V02CR6
Zoro # G0846758
product price: $1,108.37
/ea
Free Shipping & Returns
$1,108.37
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Full Load Amps 30
- Number of Poles 4
- Coil Volts 600VAC
- Height 322 mm
- Width 198 mm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Square D
- MFR # 8903LXG40V02CR6
- Zoro # G0846758
- UPC # 785901023272
- Country of Origin Mexico
- Category Lighting Contactors
Dimensions
Height | 322 mm |
Width | 198 mm |
Depth | 153 mm |
Description
Type L multipole lighting contactors are use to manage lighting loads and to control electrical heating. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. Contacts can switch up to 30A fluorescent and 20A tungsten lighting loads. The contacts are field convertible from normally open to normally closed. This 4 pole device has 4 normally open contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600 VAC. Contactor is supplied with a 110/120 VAC 50/60 Hz coil. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this lighting contactor. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. A wide variety of accessories are available for Type L lighting contactors. This lighting contactor is supplied with a HAND/OFF/AUTO selector switch and an additional two pole relay. 8903L lighting contactors are UL Listed and CSA Certified.
Documents & Resources
Ratings & Reviews
