3 Axis EMF Meter

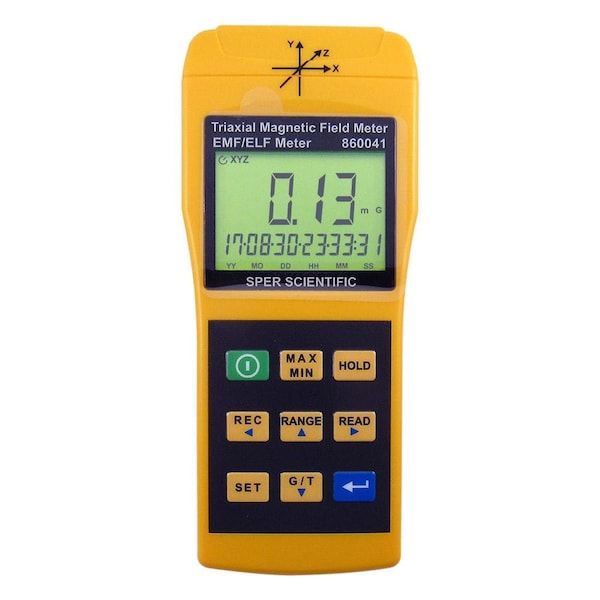

Description Simply approach the source at any angle and the triple-axis meter automatically determines EMF electro magnetic frequencies, eliminating the need for additional calculations. X, Y, and Z axis results can also be viewed independently. Measures electro magnetic fields of extremely low frequency ELF from electrical power lines and transmission equipment, appliances, computer, HVAC, audio/video, and other electrical equipment. While the evidence of the carcinogenic effect of electromagnetic emissions is still inconclusive, prudent avoidance is recommended to avoid excess exposure over long periods of time. Automatically or manually log results with time and date stamps. Holds up to 500 readings which can be reviewed on screen. Features manual or auto ranging, mG milli-Gauss and μT micro-Tesla scales, min/max and hold functions. The meter has tripod screws and a large 3-line display indicating when the battery is low or is reading over range. Comes ready to use in a soft carrying case, instructions and a 9V battery that lasts approximately 100 hours.Dimensions: 71⁄2; x 31⁄4; x 11⁄4 185 x 85 x 35 mmWeight: 8 oz 230 g Specifications Unit of Measure Range Resolution Accuracy milli-Gauss 20 0.01 20 mG ±3% + 30 dgt at 50/60 Hz 200 0.1 20 mG ±2.5% + 30 dgt at 50/60 Hz 2000 1 20 mG ±5% + 30 dgt at 30/2000 Hz μTesla 2 0.001 2 μT ±3% + 30 dgt at 50/60 Hz 20 0.01 2 μT ±2.5% + 5 dgt at 50/60 Hz 200 0.1 2 μT ±5% + 5 dgt at 30/2000 Hz Display: 3-row display with 4-digit reading Frequency Response: 30 to 2000 Hz Sampling Rate: 2.5 times per second Operating Temp: 5 to 40 degrees C Operating RH: 80% RH Downloads Instruction Manual Product Brochure
