  9. Universal Mount Steam Trap, 450 psi, 600F
Shop All Steam Traps
Spence

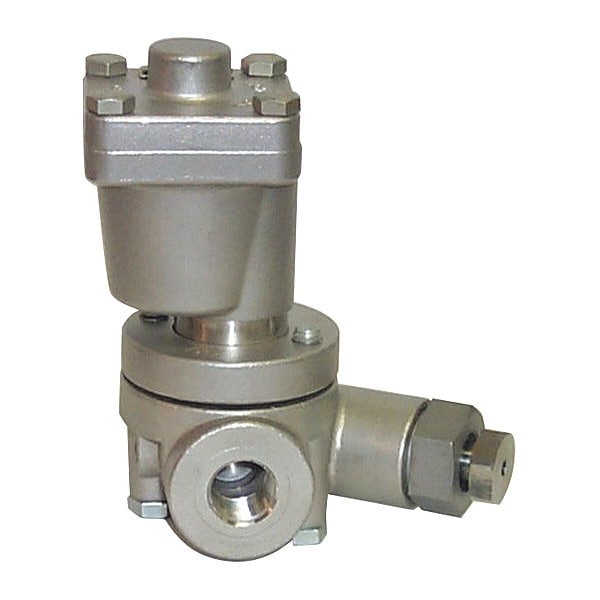

Universal Mount Steam Trap, 450 psi, 600F

product price: $367.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Max. Operating PSI 450 psi
  • Disc Material 416 Stainless Steel
  • End to End Length 2 13/16 in
  • Condensate Capacity Lbs/Hr 4,600 lb/hr
  • Max. Temp. 600 Degrees F
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

End to End Length 2 13/16 in
Overall Length 2 13/16 in

Details

Item Steam Trap
Max. Operating PSI 450 psi
Disc Material 416 Stainless Steel
Condensate Capacity Lbs/Hr 4,600 lb/hr
Max. Temp. 600 Degrees F
Body Material Stainless Steel
Type Steam Trap (No connector block)
Pipe Configuration UMC
Application Air Vents, Cooking Equipment, Drip Legs, Process Equipment, Steam Tracing, Unit Heaters
Downstream PSI Range 0 to 450 psi
Configuration Straight-Thru
Steam Trap Type Thermostatic
Self-Draining Self-Draining
Operating Pressure - Maximum 450 psi
Operating Temperature - Maximum 600 Degrees F
Actuator Material Stainless Steel
Distance Between Inlet and Outlet Port 2 13/16 in
Inlet Port Connection Type ANSI/ASME Flanged
Condensate Capacity 4,600 lb/hr
Outlet Port Connection Type ANSI/ASME Flanged

Description

Steam Trap, Actuator Material Stainless Steel, Application Air Vents, Cooking Equipment, Drip Legs, Process Equipment, Steam Tracing, Unit Heaters, Body Material Stainless Steel, Condensate Capacity 4,600 lb/hr, Configuration Straight-Thru, Distance Between Inlet and Outlet Port 2 13/16 in, Includes Strainer Not Applicable, Inlet Port Connection Gender Not Applicable, Inlet Port Connection Size Not Applicable, Inlet Port Connection Type ANSI/ASME Flanged, Number of Ports Not Applicable
